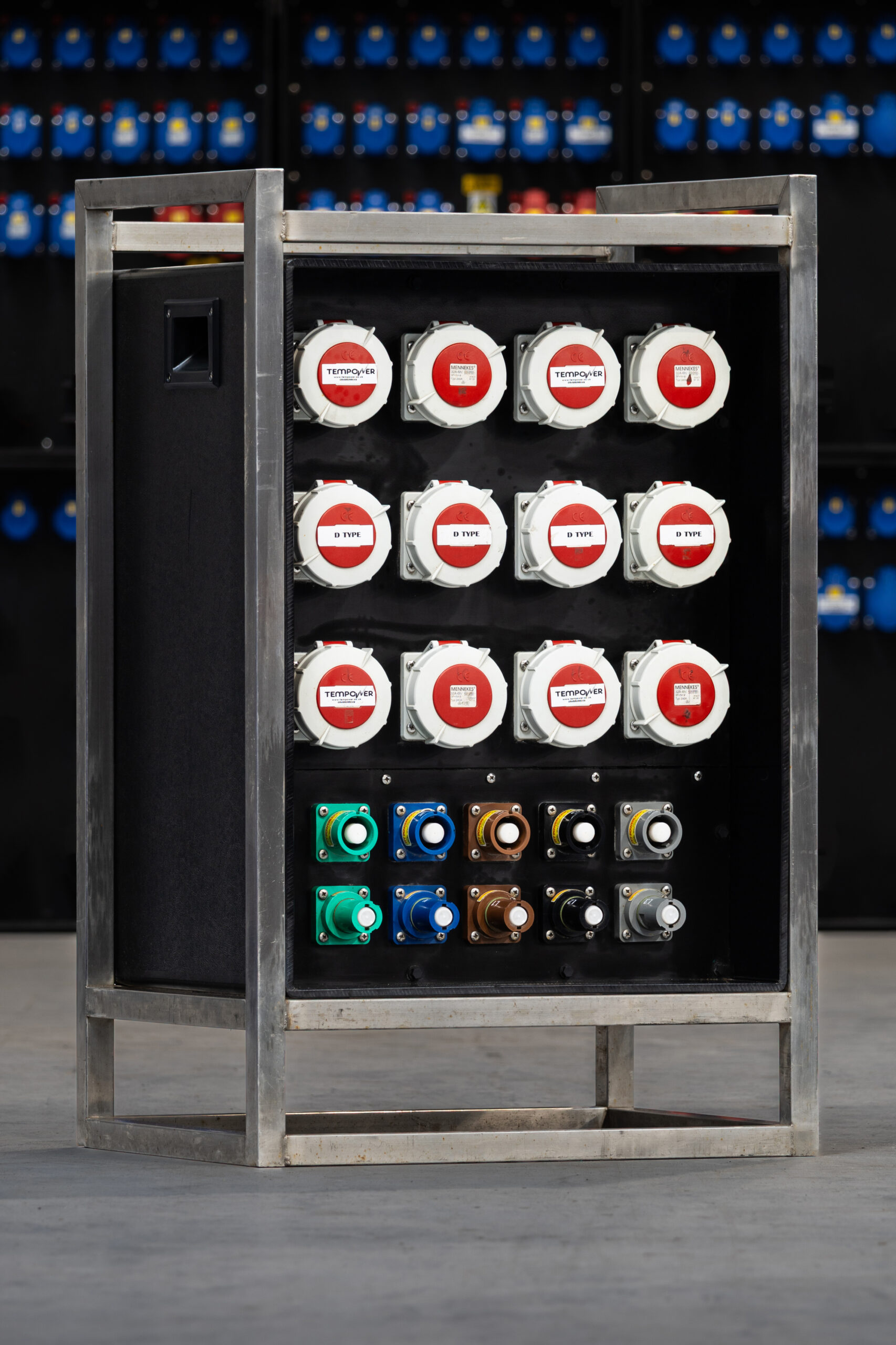

POWERLOCK BOARDS

PL20 - PL to PL, 3 x 125/3, 4 x 63/3, 4 x 32/3

PL21 - PL to PL, 2 x 63/3, 10 x 32/3

PL50 - PL to PL, 3 x 125/3, 3 x 125/1, 3 x 63/3, 3 x 63/1

PL51 - PL to 1 x PL Inline

PL52 - PL to 2 x PL Inline RCD

PL53 - PL to 3 x PL Inline 3 x 63/3

PL52SP - PL to 2 x PL Inline (no data sheet yet)

PL51 - PL to PL Inline RCD (no data sheet yet)

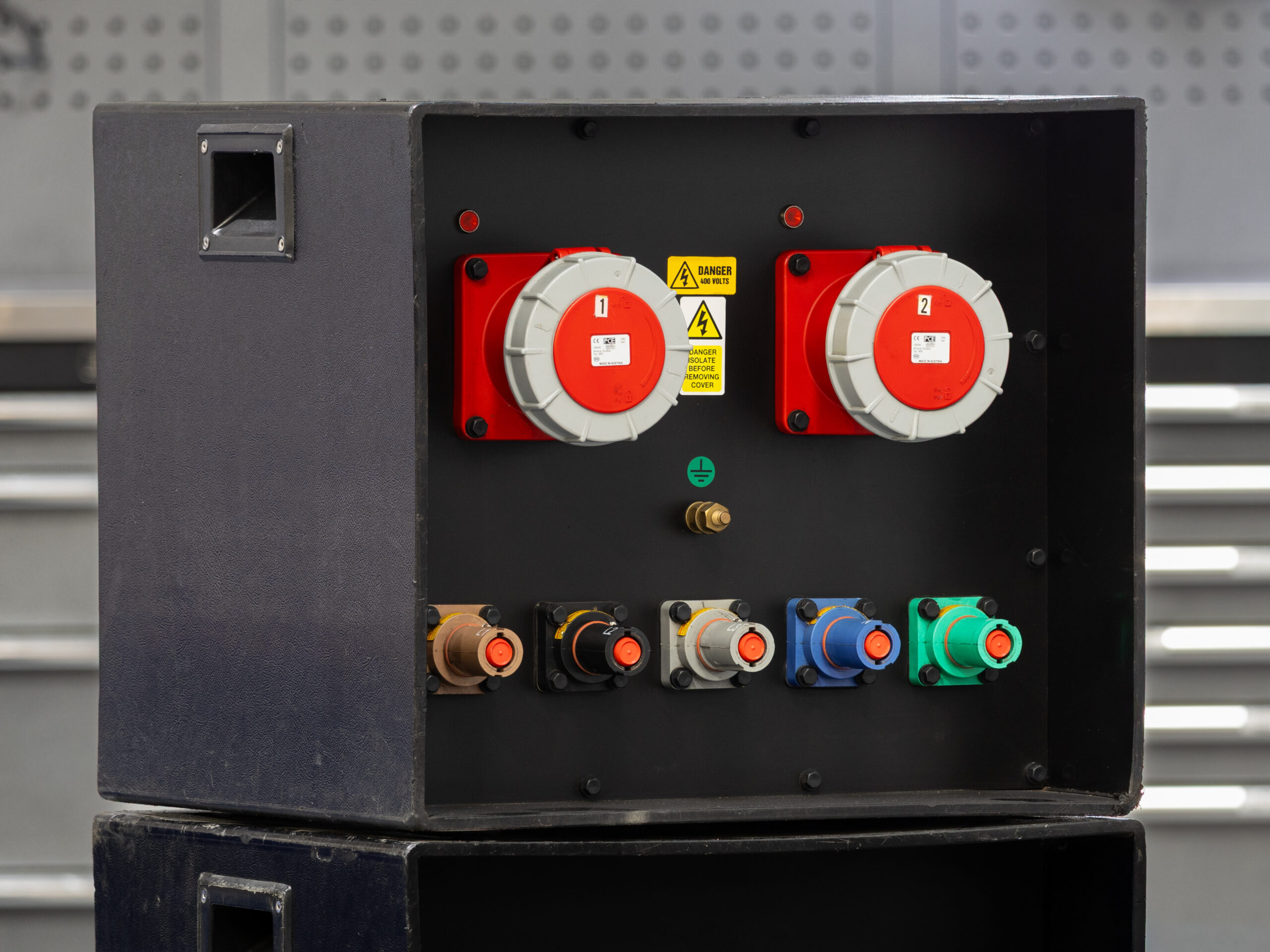

PL54 - PL to 2 x 125/3, 3 x 63/3 (no data sheet yet)

PL55 - PL to PL, 6 x 125/3

PL56 - PL to PL, 4 x 125/3

PL57 - PL to 2 x PL, 1 x 125/3, 3 x 63/3, 6 x 63/1

PL58 - PL to PL, 1 x 125/3, 3 x 63/3, 3 x 32/3, 6 x 32/1, 6 x 16/1

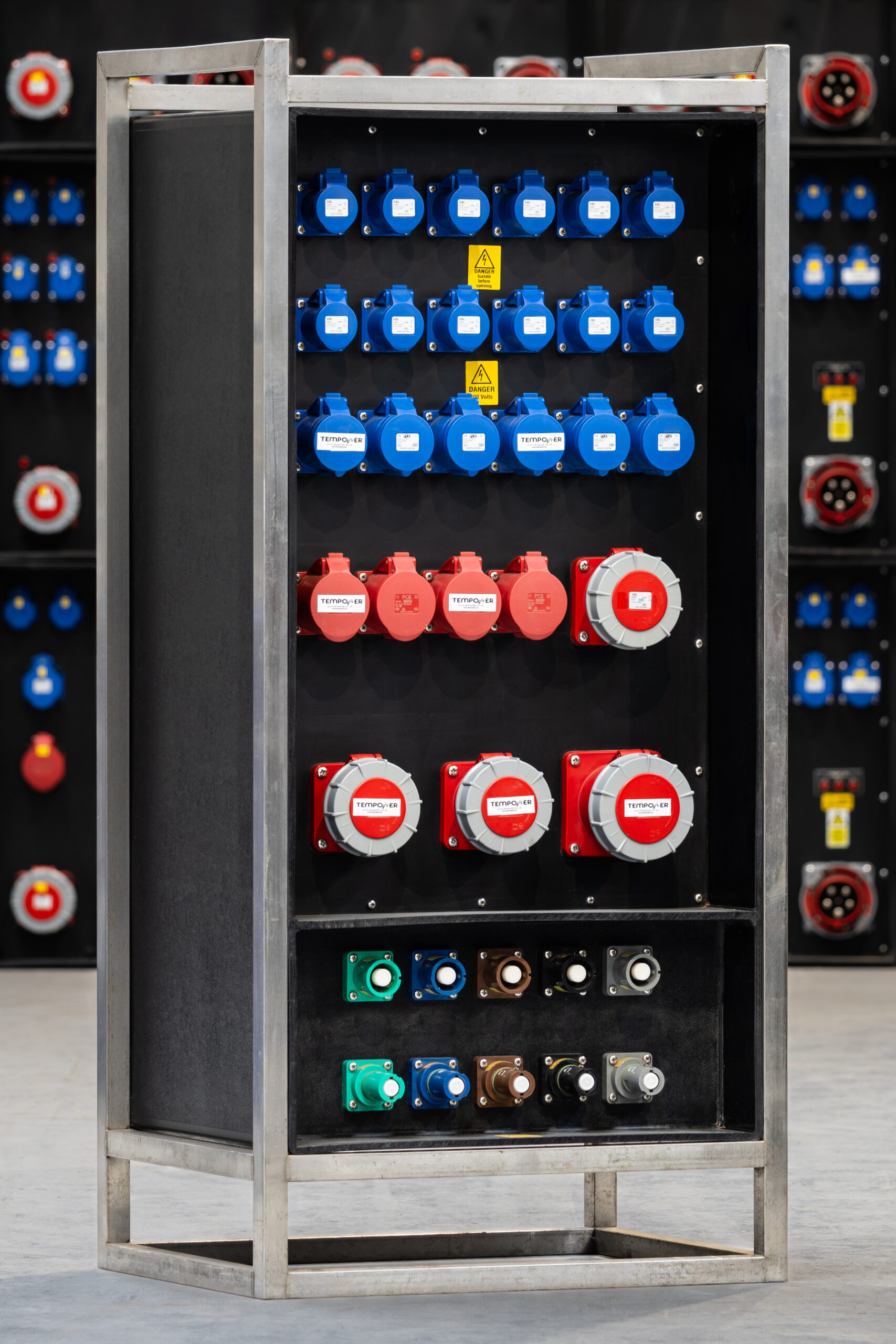

PL59 - PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

PL62 - PL to PL, 1 x 125/3, 3 x 63/3, 3 x 32/3 (no data sheet yet)

SP1 - PL to 3 PL to 630 A Breaker, 2 x 400 A, 1 x 125/3 VRCD (no data sheet yet)

SP2 - PL to 3 PL to 800 A Breaker, 1 x 400 A, 3 x 63/3 VRCD (no data sheet yet)

SP4 - PL to 1 x 125/3, 1 x 63/3, 1 x 32/3, 9 x 32/1 (no data sheet yet)

SP5 - PL to PL, 1 x 125 A/3, 2 x 63 A/3, 4 x 32 A/3 (no data sheet yet)

SP9 - 2 PL to 2 x 250 A Powerlock VRCD, 4 x 63/3 VRCD, 4 x 32/3 VRCD (no data sheet yet)

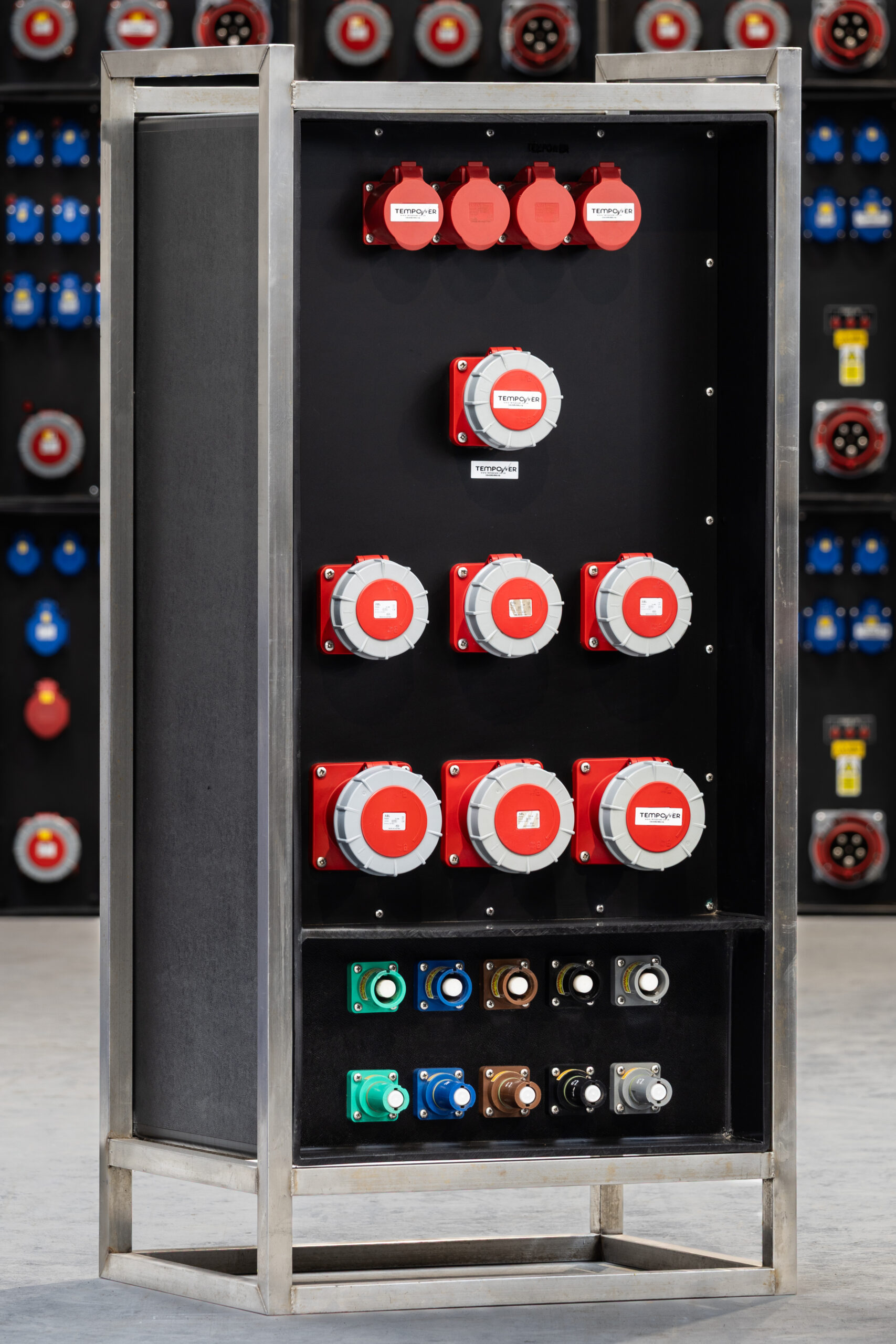

PL20 – PL to PL, 3 x 125/3, 4 x 63/3, 4 x 32/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Enclosure (IP)	IP44	Amperage (A)	63	3ph Voltage	400
Impact (IK)	IK>06	Voltage	230
Unit Max. Amps	400A	Connection	L+N+E Appliance inlet
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Unit Max. Amps	6kA	Switch Standard:	BS EN 60947-2	3x 125A Sockets	3ph+N+E
Continuous Load	70%	Switch	400A	4x 63A Sockets	3ph+N+E
				4x 32A Sockets	3ph+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCBs + Shunts	400	C125		10	BS EN 60898
3x Shunts with VELRs
3x MCBs to VELRs		C2		6	BS EN 60898
4x MCBs + Shunts	400	C63		10	BS EN 60898
4x Shunts with VELRs
3x MCBs to VELRs		C2		6	BS EN 60898
4x RCBOs	400	C32	30	6	BS EN 60898

Download Datasheet

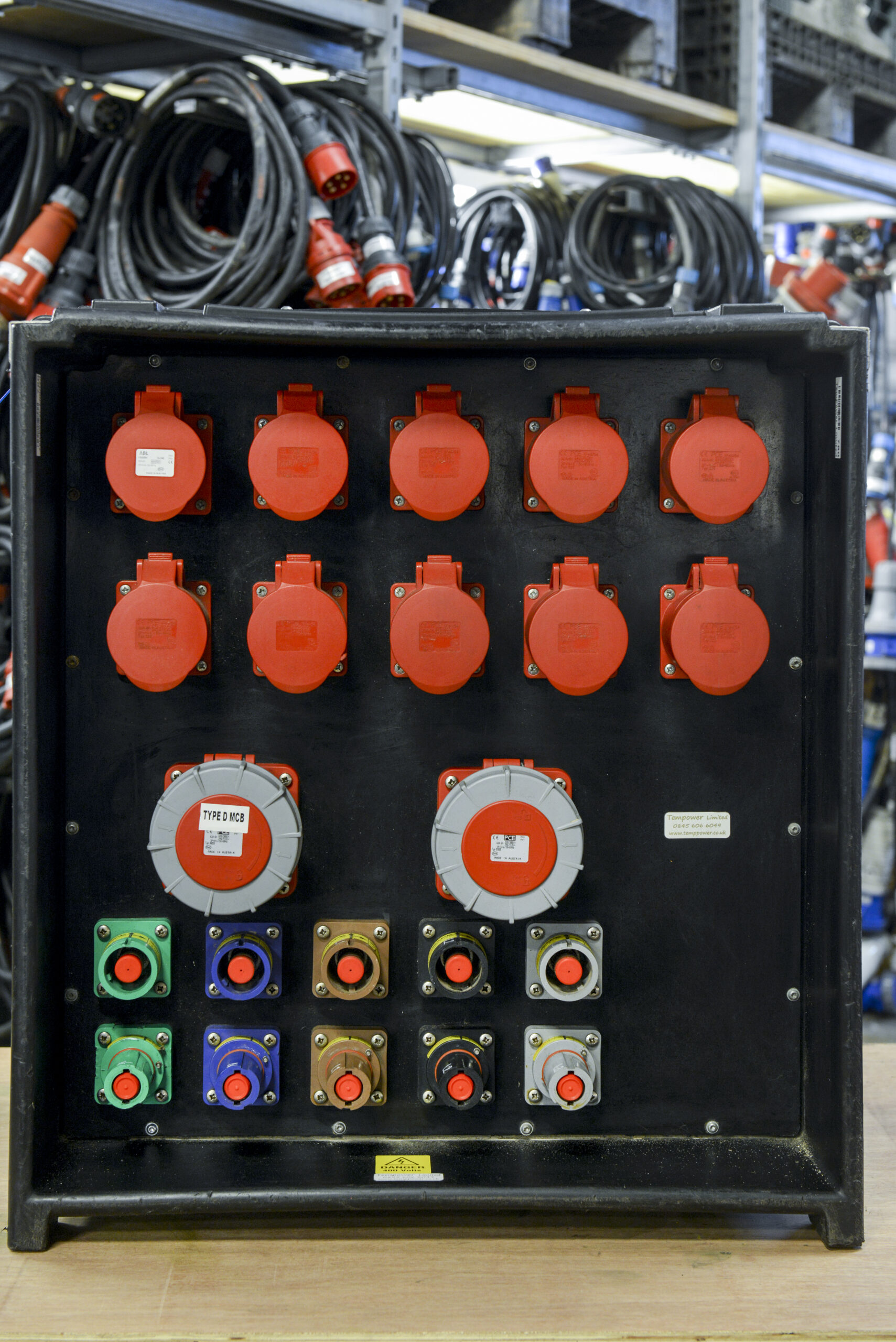

PL21 – PL to PL, 2 x 63/3, 10 x 32/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	590x400x660	Amperage (A)	400	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Unit Max. Amps	6kA		N/A	10x 32A Sockets	3ph+N+E
Continuous Load	70%			2x 63A Sockets	3ph+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
2x MCBs	400	C63		10	BS EN 60898
‘+ 2x Shunts with VELR
MCB	400	C32		10	BS EN 60898

Download Datasheet

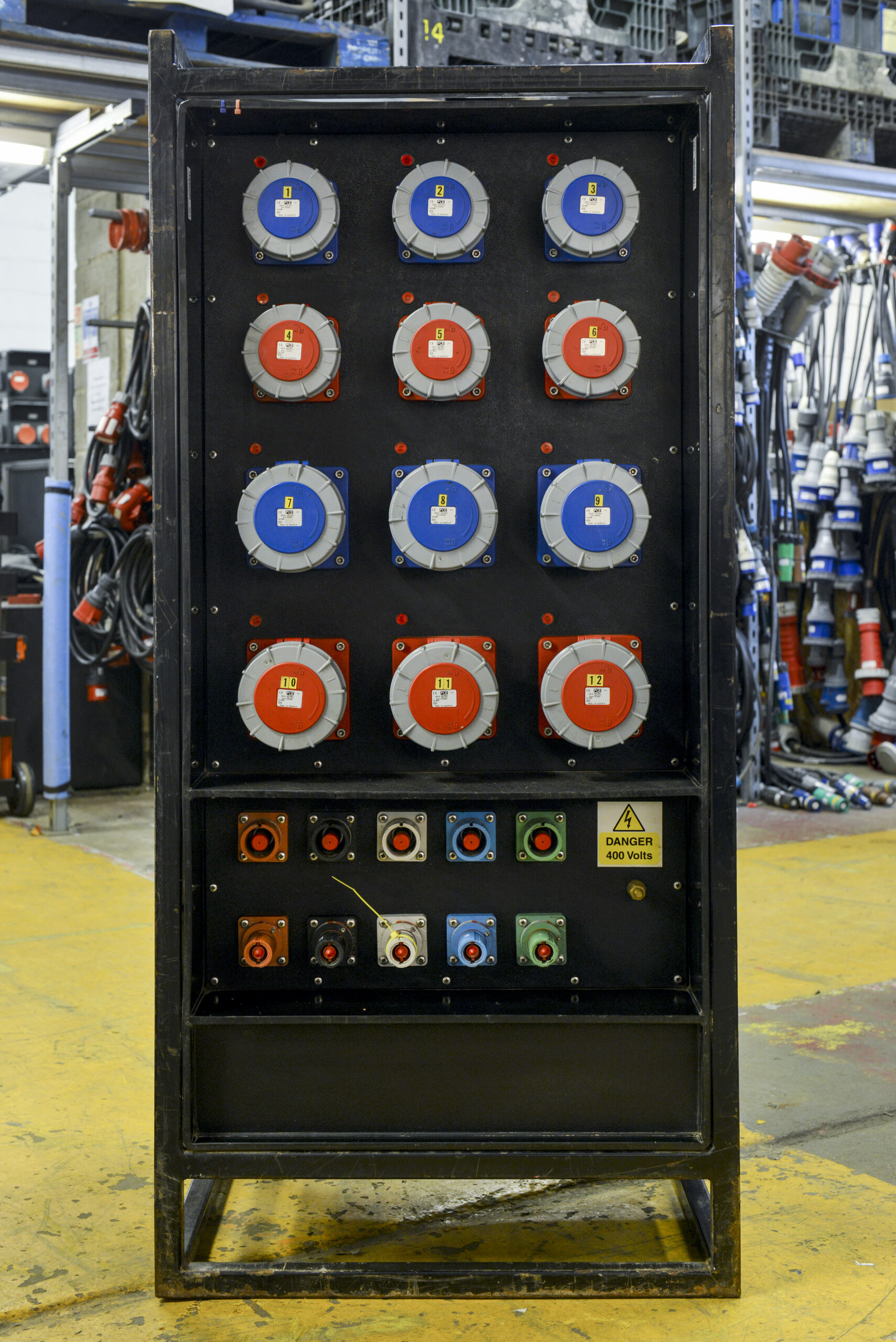

PL50 – PL to PL, 3 x 125/3, 3 x 125/1, 3 x 63/3, 3 x 63/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	640x500x1390	Amperage (A)	500	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Continuous Load	70%	Switch Standard	BS EN 60947-2	10x 32A Sockets	L+N+E
		Switch	400A	2x 63A Sockets	3ph+N+E
				3x 125A C Form	L+N+E
				3x 125A C Form	3ph+N+E
				PL Source
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	230	63c	VIR	10	BS EN 60898
MCB	400	63c	VIR	10	BS EN 60898
MCB	230	125c	VIR	10	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

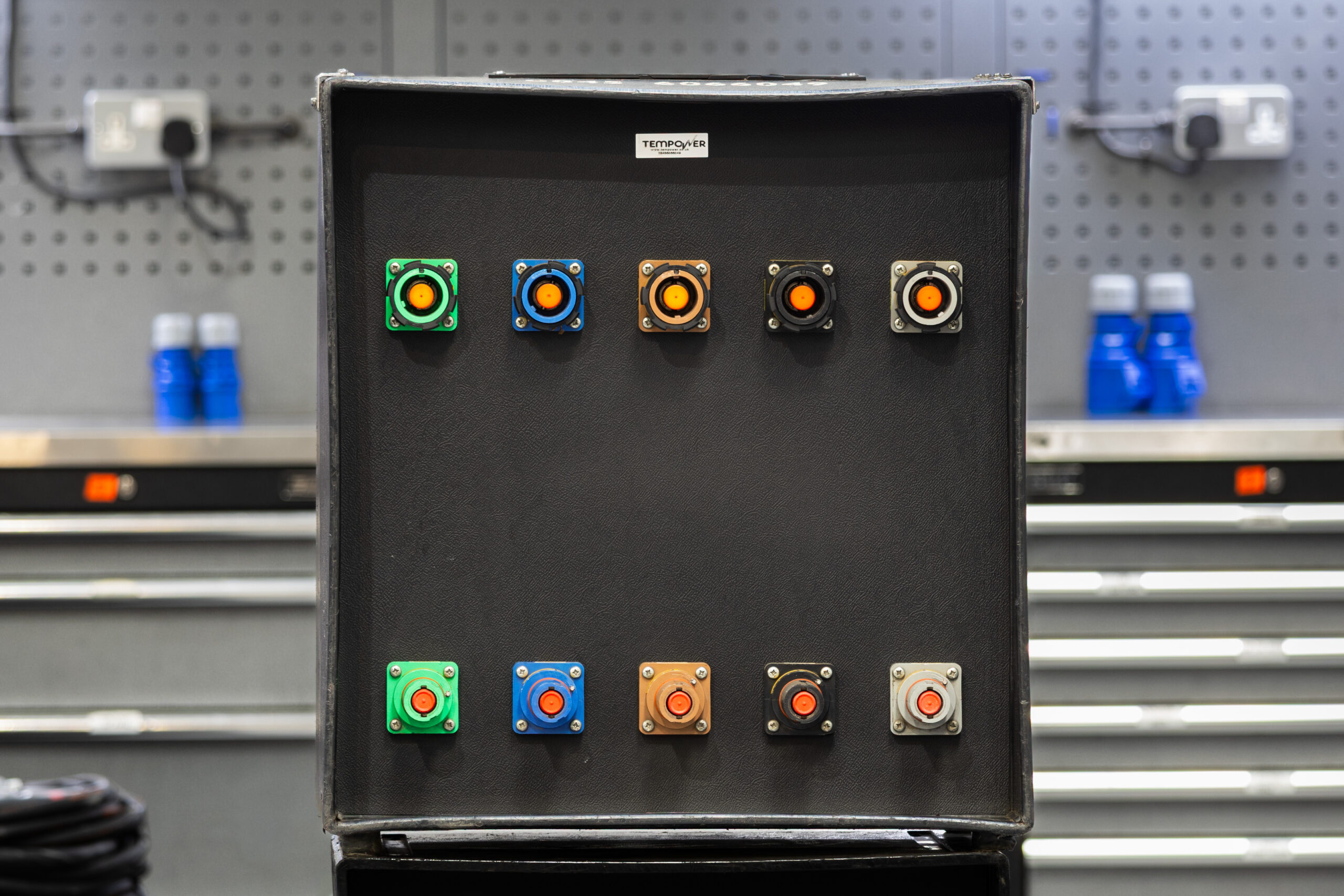

PL51 – PL to 1 x PL Inline

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	560x420x620	Amperage (A)	400/630	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	6kA	Switch Standard	BS EN 60947-2	Powerlock Source	3ph+N+E Set
Continuous Load	70%	Switch	400A
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
1x MCCB	400	400	VIR	45	BS EN 60947-2

Download Datasheet

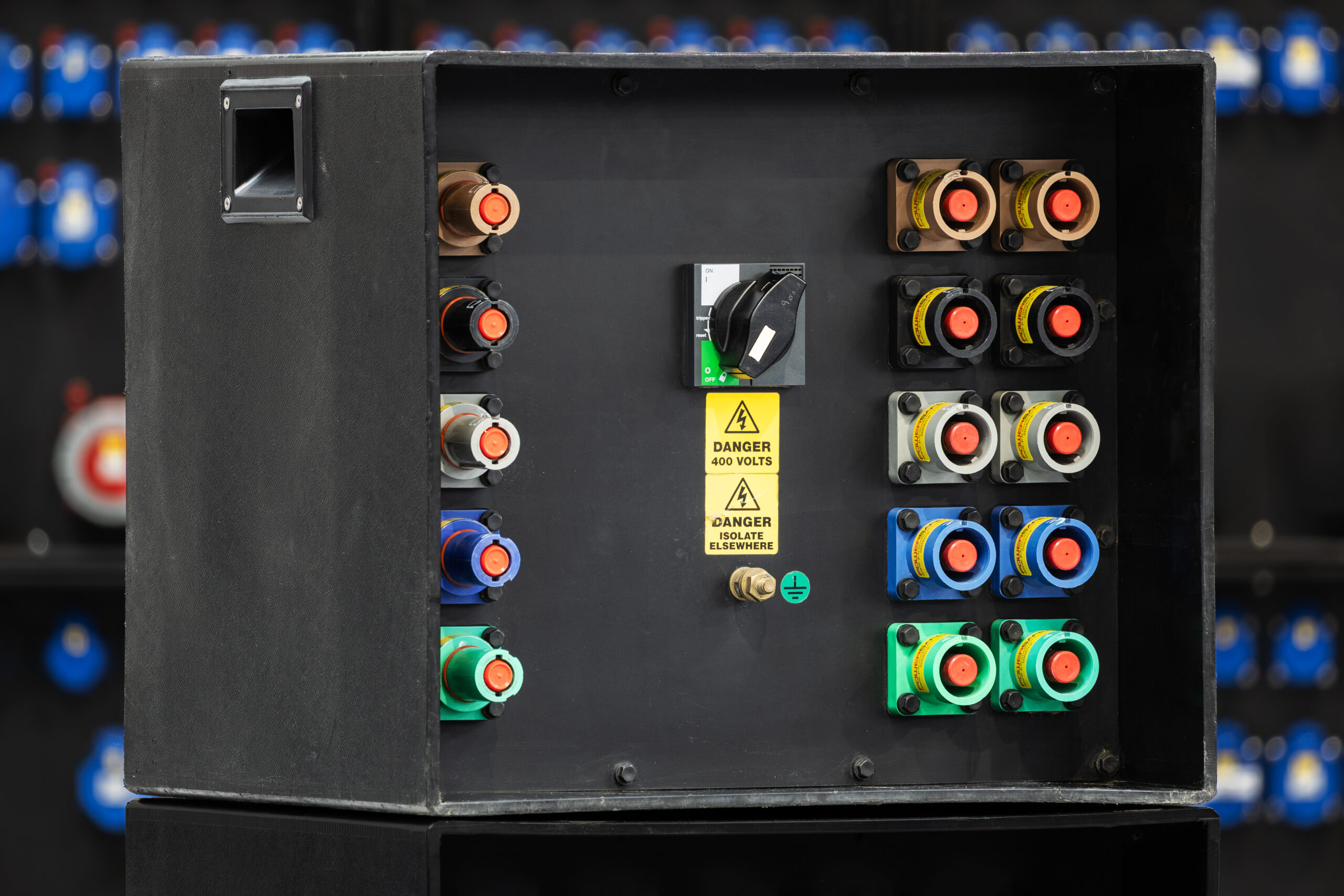

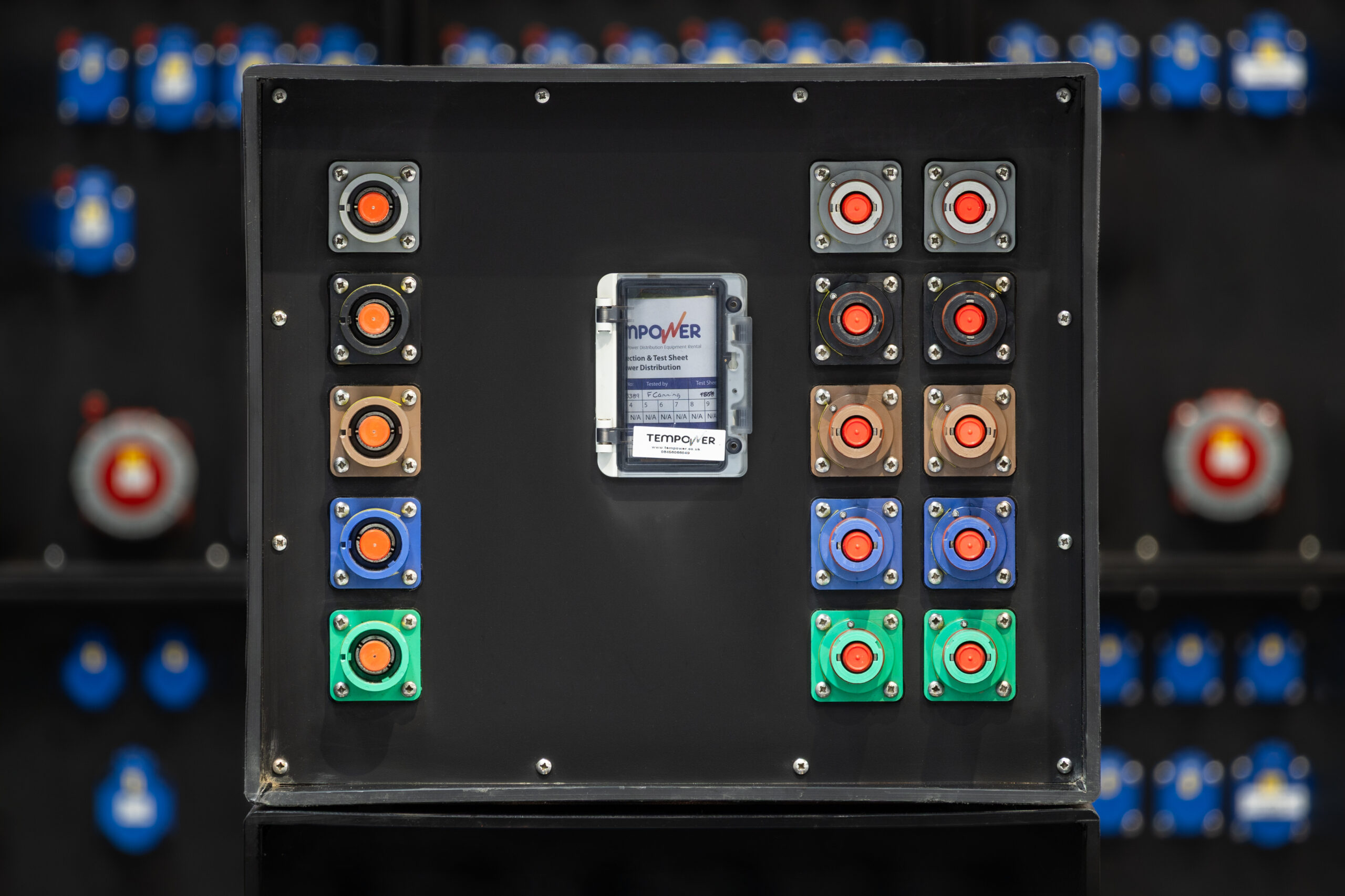

PL52 – PL to 2 x PL Inline RCD

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	580x480x620	Amperage (A)	400	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	6kA	Switch Standard	BS EN 60947	2x Sets of Powerlock	3ph+N+E
Continuous Load	70%	Switch	630A
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCCB	400	400A	VIR	ICU 45	BS EN 60947-2

Download Datasheet

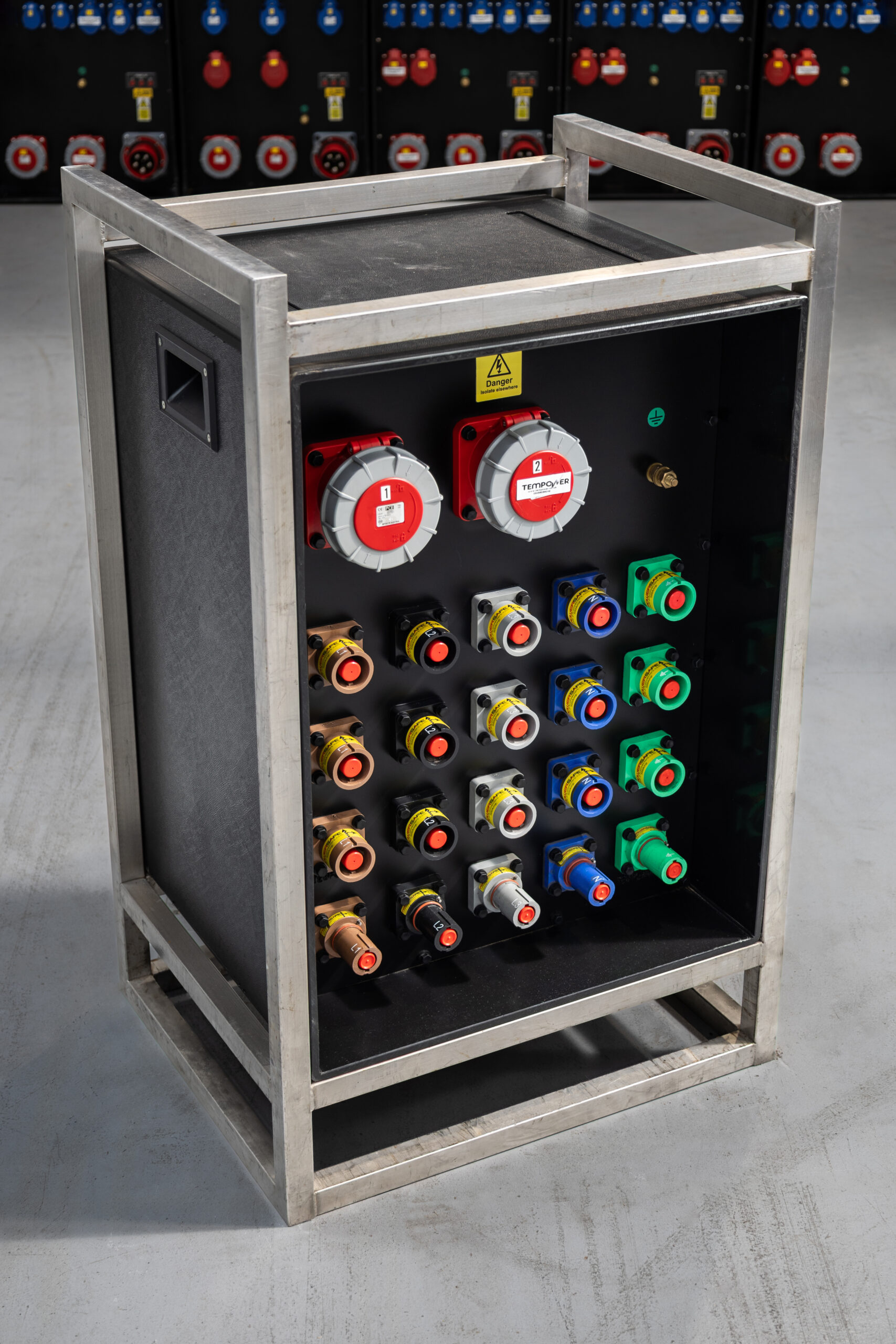

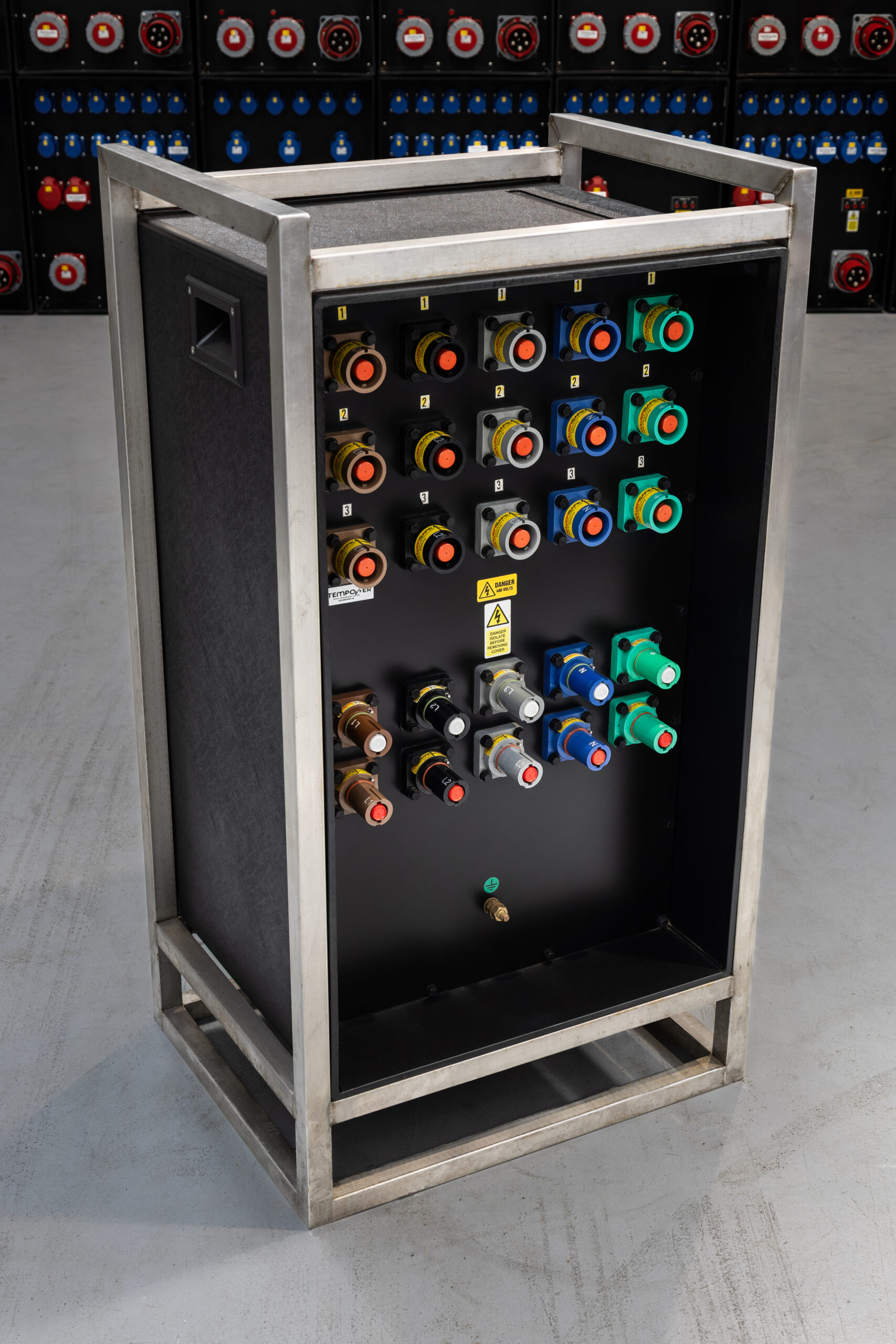

PL53 – PL to 3 x PL Inline 3 x 63/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	595x470x900	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25ka	Switch Standard	BS EN 60947-2	2x 63A Sockets	3ph+N+E
Continuous Load	70%	Switch	630A	Powerlock Source	3ph+N+E set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	63c	VIR	10	BS EN 60947-2
MCCB	400	400a	VIR	25	BS EN 60947-2

Download Datasheet

PL53 – PL to 3 x PL Inline 3 x 63/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	595x470x900	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25ka	Switch Standard	BS EN 60947-2	2x 63A Sockets	3ph+N+E
Continuous Load	70%	Switch	630A	Powerlock Source	3ph+N+E set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	63c	VIR	10	BS EN 60947-2
MCCB	400	400a	VIR	25	BS EN 60947-2

Download Datasheet

PL53 – PL to 3 x PL Inline 3 x 63/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	595x470x900	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25ka	Switch Standard	BS EN 60947-2	2x 63A Sockets	3ph+N+E
Continuous Load	70%	Switch	630A	Powerlock Source	3ph+N+E set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	63c	VIR	10	BS EN 60947-2
MCCB	400	400a	VIR	25	BS EN 60947-2

Download Datasheet

PL53 – PL to 3 x PL Inline 3 x 63/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	595x470x900	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25ka	Switch Standard	BS EN 60947-2	2x 63A Sockets	3ph+N+E
Continuous Load	70%	Switch	630A	Powerlock Source	3ph+N+E set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	63c	VIR	10	BS EN 60947-2
MCCB	400	400a	VIR	25	BS EN 60947-2

Download Datasheet

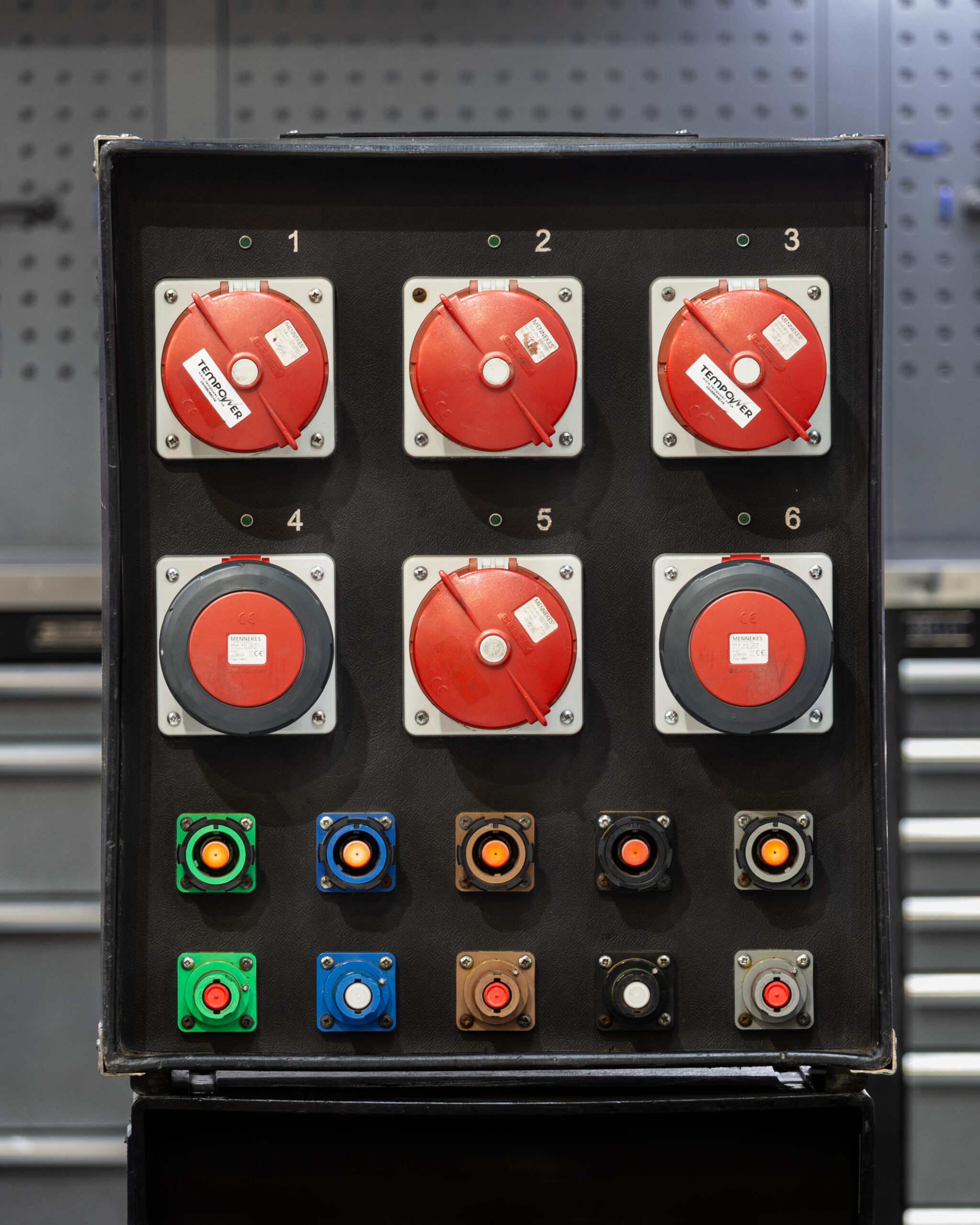

PL55 – PL to PL, 6 x 125/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	565x420x685	Amperage (A)	500	1ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	10ka		N/A	2x Sets of Powerlock	3ph+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	125c	VIR	10	IEC 60947

Download Datasheet

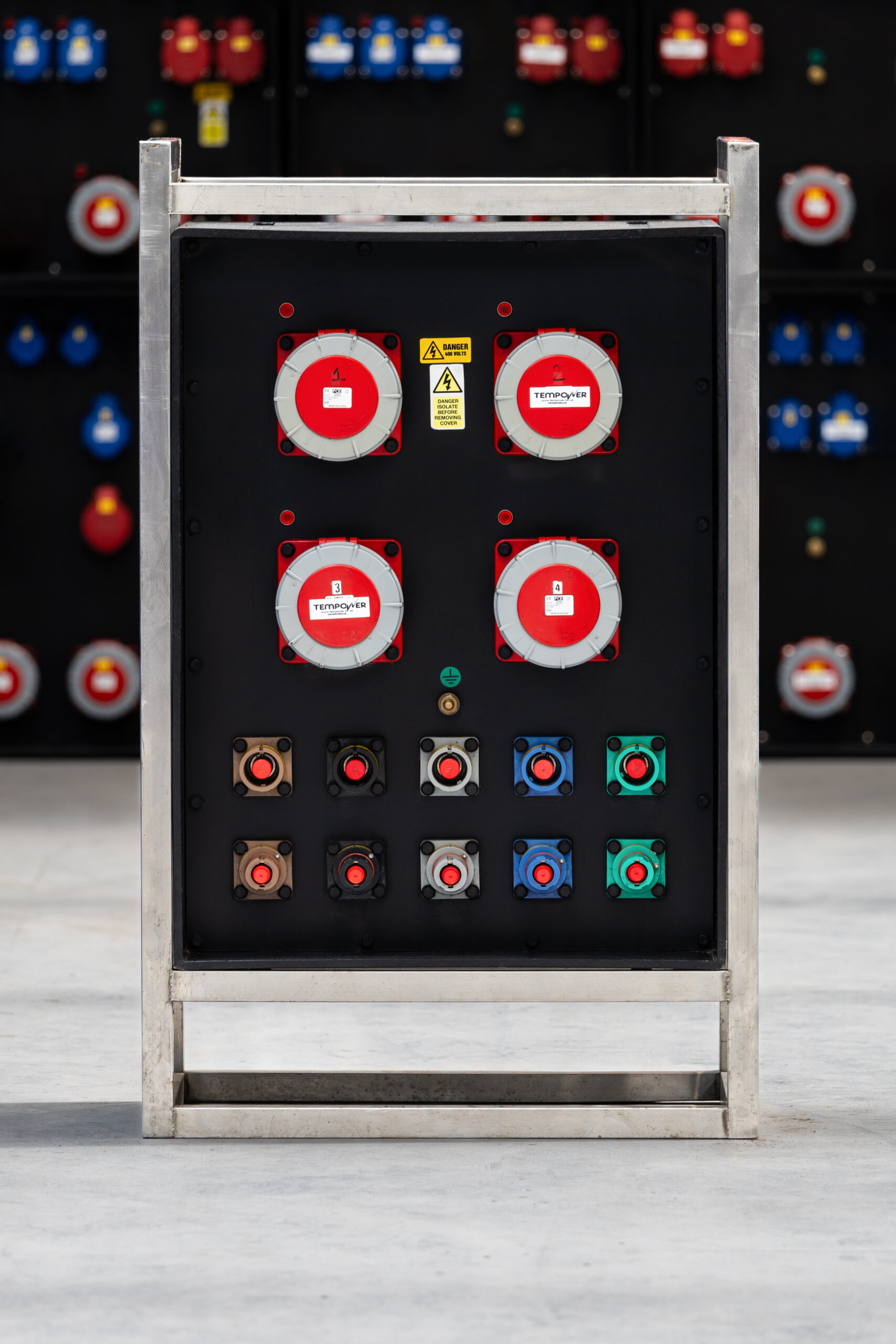

PL56 – PL to PL, 4 x 125/3

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Enclosure (IP)	IP44	Amperage (A)	600	3ph Voltage	400
Impact (IK)	IK>06	Voltage	400
Unit Max. Amps	400A	Connection	3ph+N+E Powerlock Set
Voltage (V)	400V
Frequency Hz	50Hz
Short Circuit Rating	6kA	Supply Isolation		Connectivity
Continuous Load	70%	Switch Standard	BS EN 60947-2	2x Sets of Powerlock	3ph+N+E
		Switch	400A	Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB	400	125c	VIR	15	IEC 60947

Download Datasheet

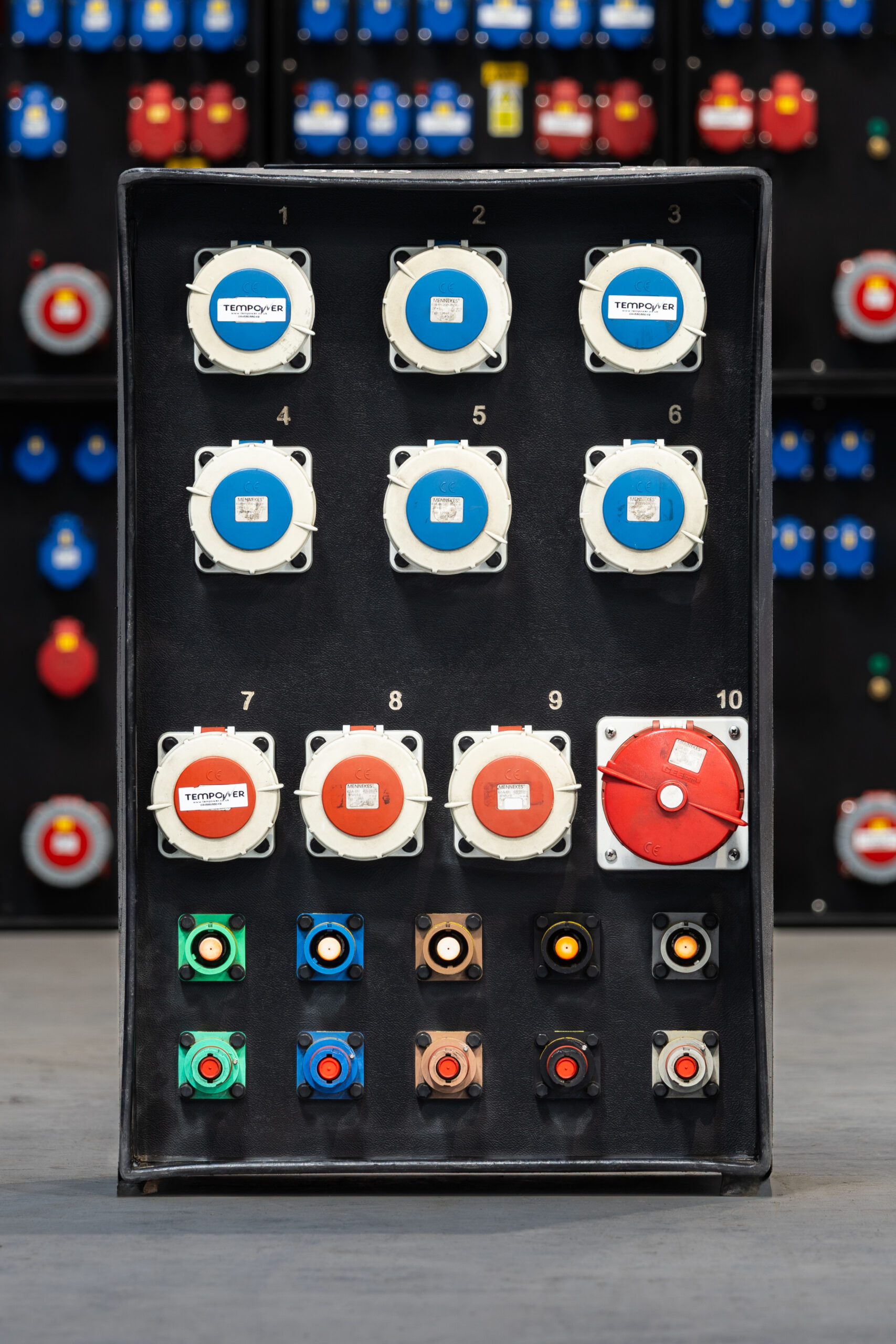

PL57 – PL to 2 x PL, 1 x 125/3, 3 x 63/3, 6 x 63/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	560x420x840	Amperage (A)	400	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	6kA		N/A	1x 125A Socket	3ph+N+E
Continuous Load	70%		3x 63A Sockets		3ph+N+E
			3x 63A Sockets		L+N+E
			Powerlock Source		3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
1x MCB	400	C125		10	BS EN 60898
‘+Shunt with VELR
MCB to VELR		C0.5		10	BS EN 60898
3x MCB	400	C63		10	BS EN 60898
‘+Shunt with VELR
MCB to VELR		C0.5		10	BS EN 60898
6x MCBs		C63		6	BS EN 60898

Download Datasheet

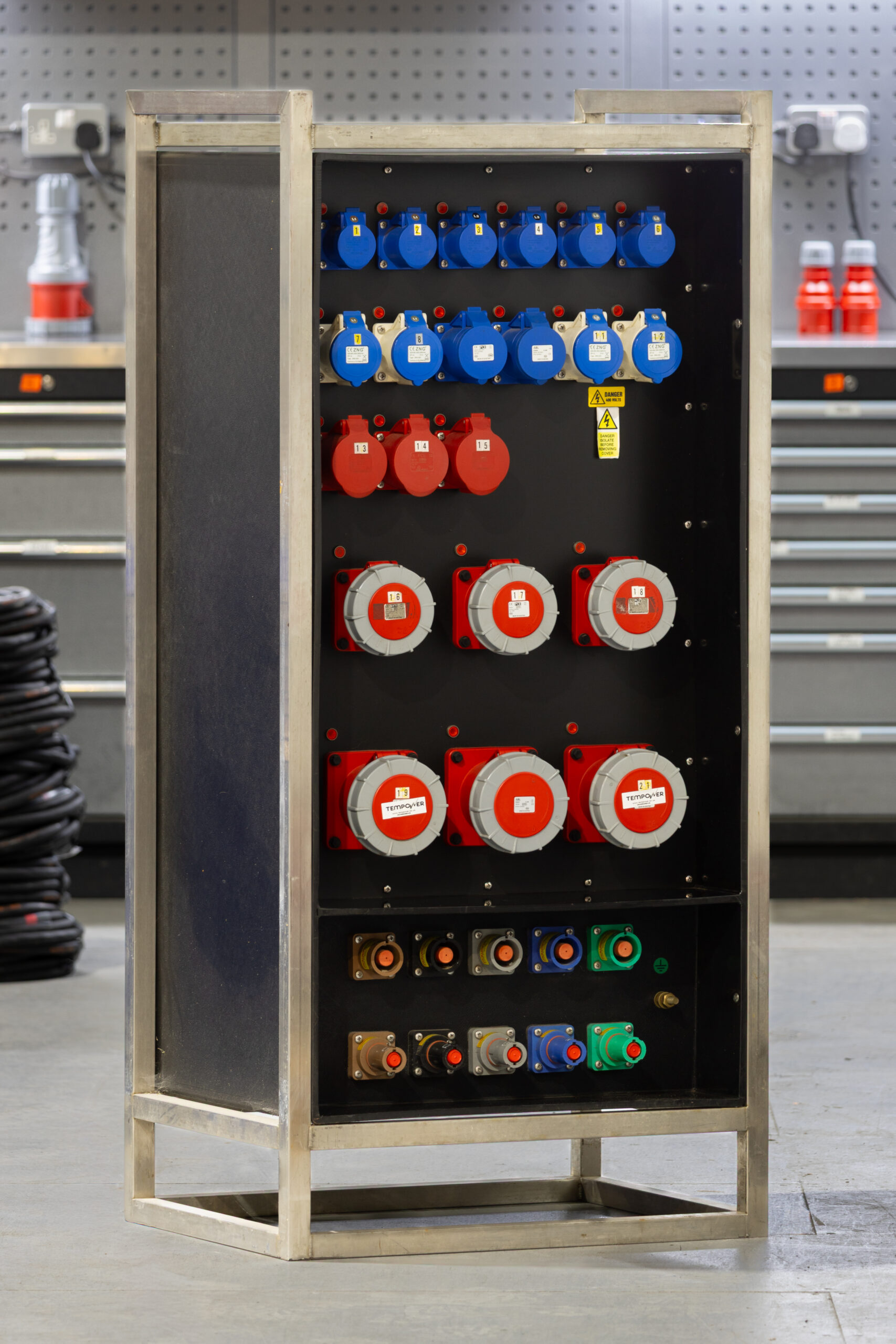

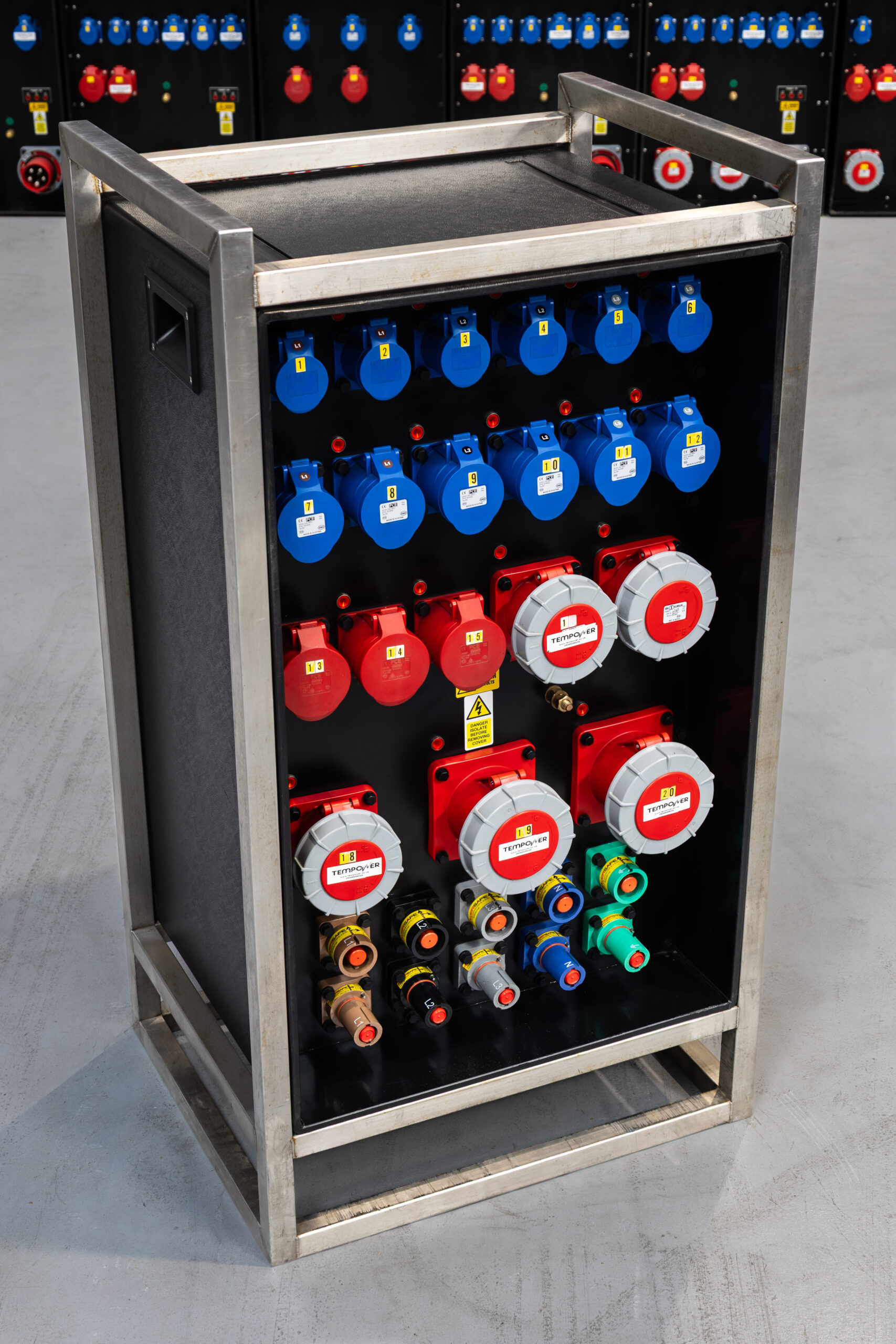

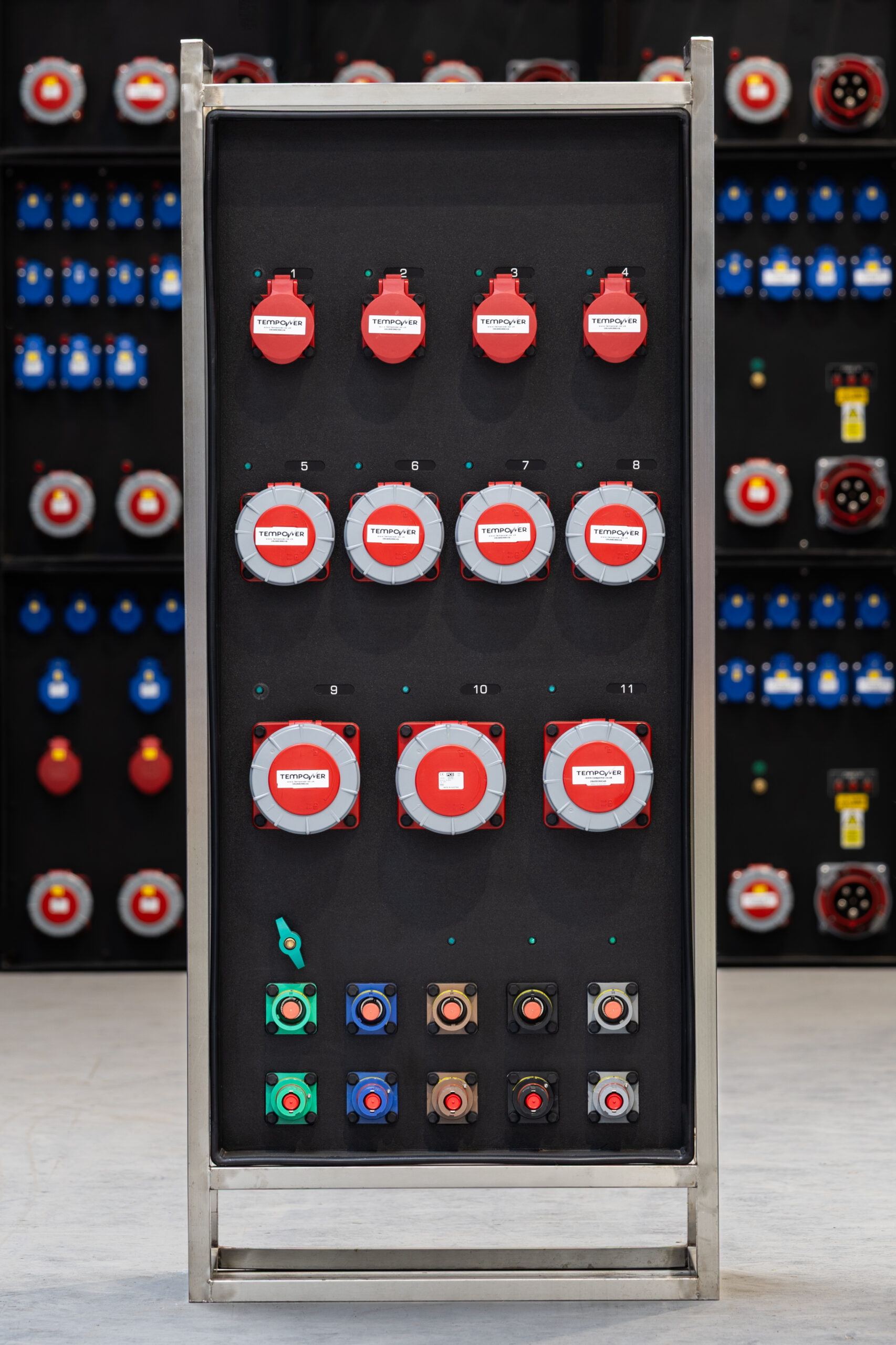

PL58 – PL to PL, 1 x 125/3, 3 x 63/3, 3 x 32/3, 6 x 32/1, 6 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	595x580x1195	Amperage (A)	500	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	6x 16A Socket	L+N+E
Continuous Load	70%	Switch	400A	6x 32A Socket	L+N+E
				3x 32A Socket	3ph+N+E Set
				3x 63A Socket	3ph+N+E
				3x 125A Socket	3ph+N+E
				3x 63A Socket	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
RCBO	400	32c	30	10	BS EN 60898
MCB	400	63c	VIR	10	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet

PL59 – PL to PL, 1 x 125/3, 2 x 63/3, 3 x 32/3, 6 x 32/1, 12 x 16/1

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	Powerlock	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	630x550x1130	Amperage (A)	500	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Powerlock Set
Unit Max. Amps	400A
Voltage (V)	400V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	25kA	Switch Standard	BS EN 60947-2	1x 125A Socket	3ph+N+E
Continuous Load	70%	Switch	400A	3x 63A Socket	3ph+N+E
				3x 32A Socket	3ph+N+E
				6x 32A Sockets	L+N+E
				12x 16A Sockets	L+N+E
				Powerlock Source	3ph+N+E Set
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	230	16c	30	10	BS EN 60898
RCBO	230	32c	30	10	BS EN 60898
MCB	400	32c	100	10	BS EN 60898
MCB	400	63c	VIR	6	BS EN 60898
MCB	400	125c	VIR	15	BS EN 60898

Download Datasheet
