POWER DISTRIBUTION – 63 AMP

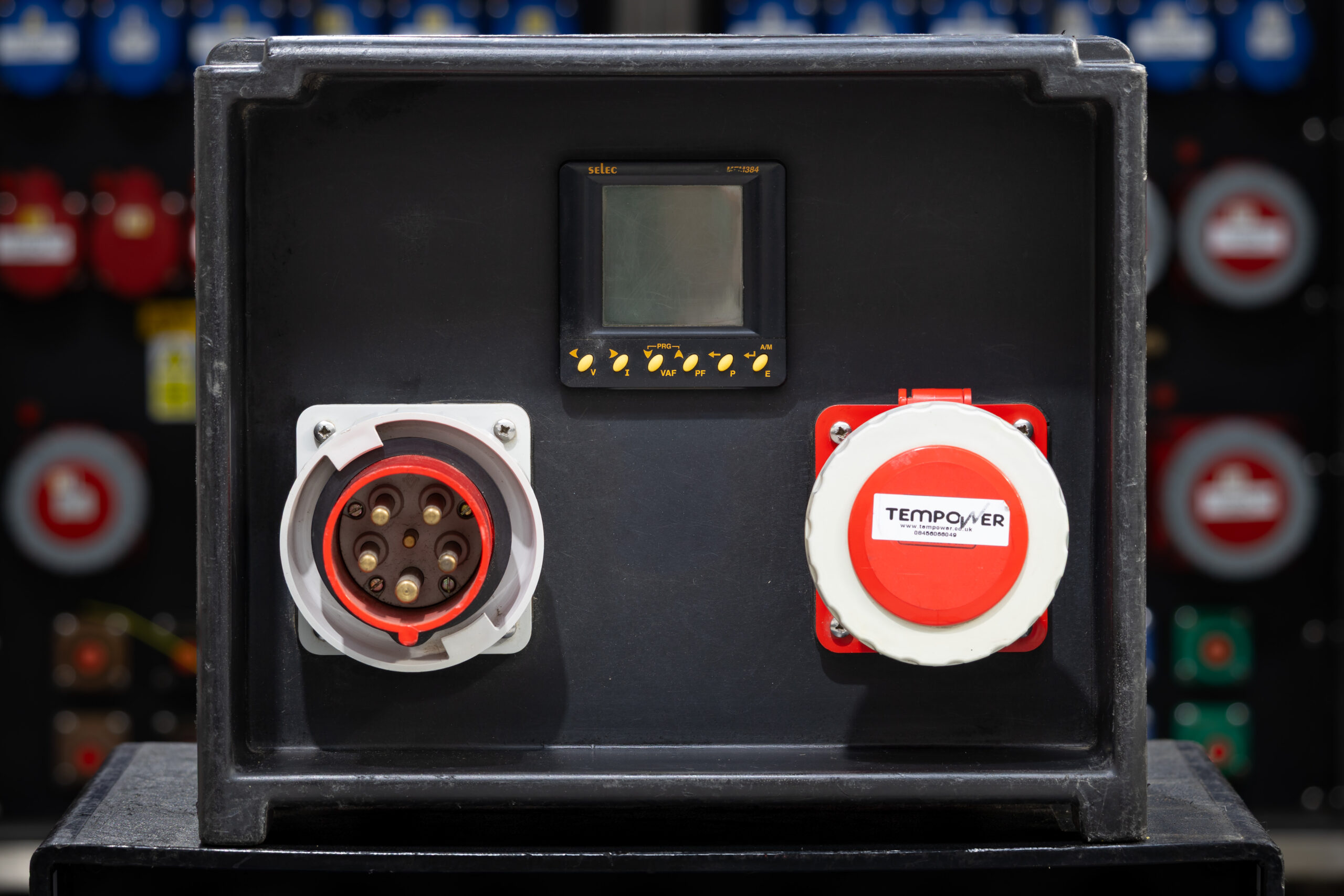

Br1m - 63/3 inline meter (no data sheet yet)

BB4 - 63 A/1 to 2 x 32 A/1, 4 x 16 A/1 Distro

BB9 - 63/1 to 63/1 Inline RCD

BR6 - 63/3 to 12 x 16/1

BR7 - 63/3 to 3 x 32/1, 6 x 16/1

BR9 - 63/3 to 1 x 63/3 Inline RCD

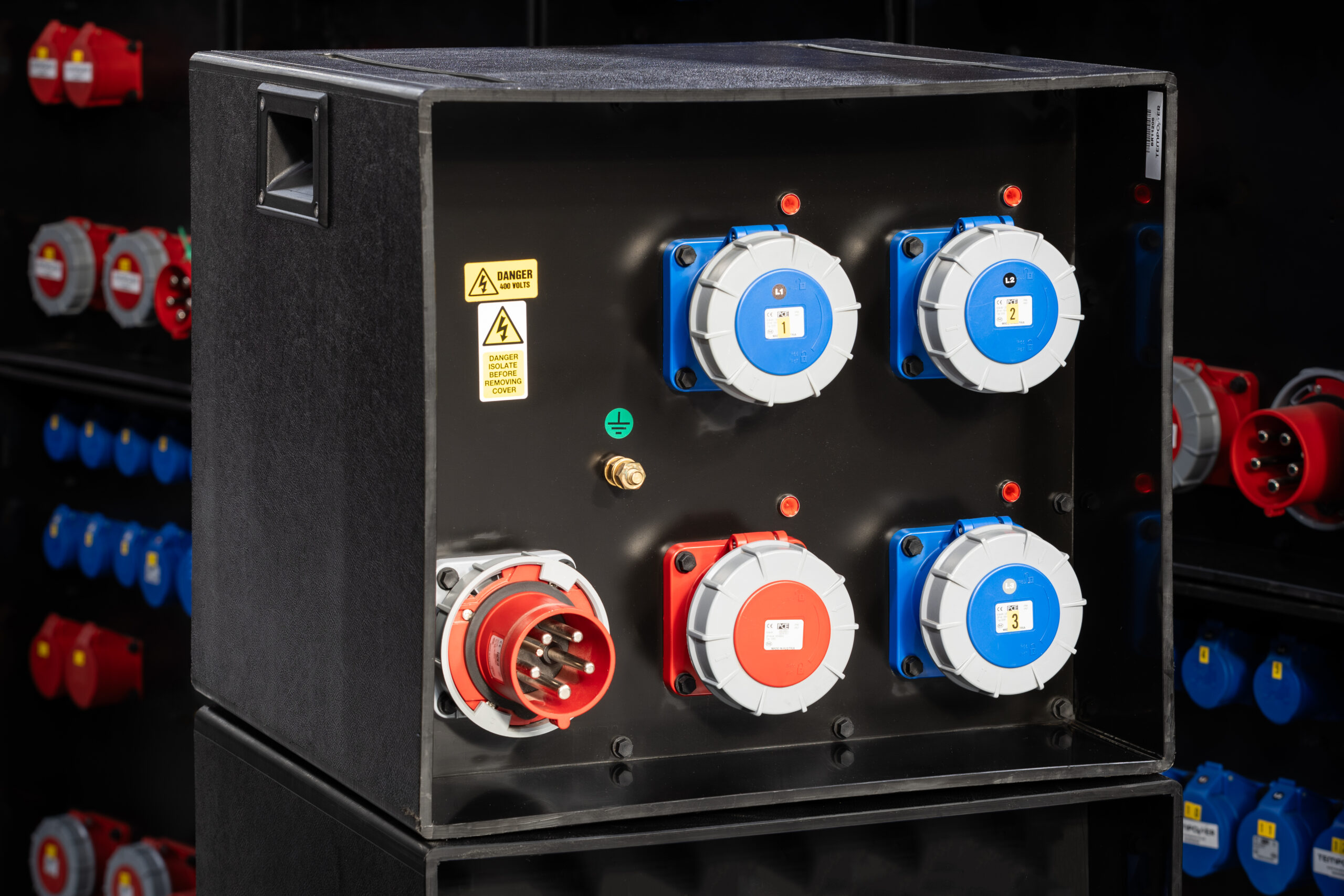

BR11 - 63/3 to 1 x 63/3, 3 x 63/1 (no data sheet yet)

BR13 - 63/3 to 3 x 63/1 MCB

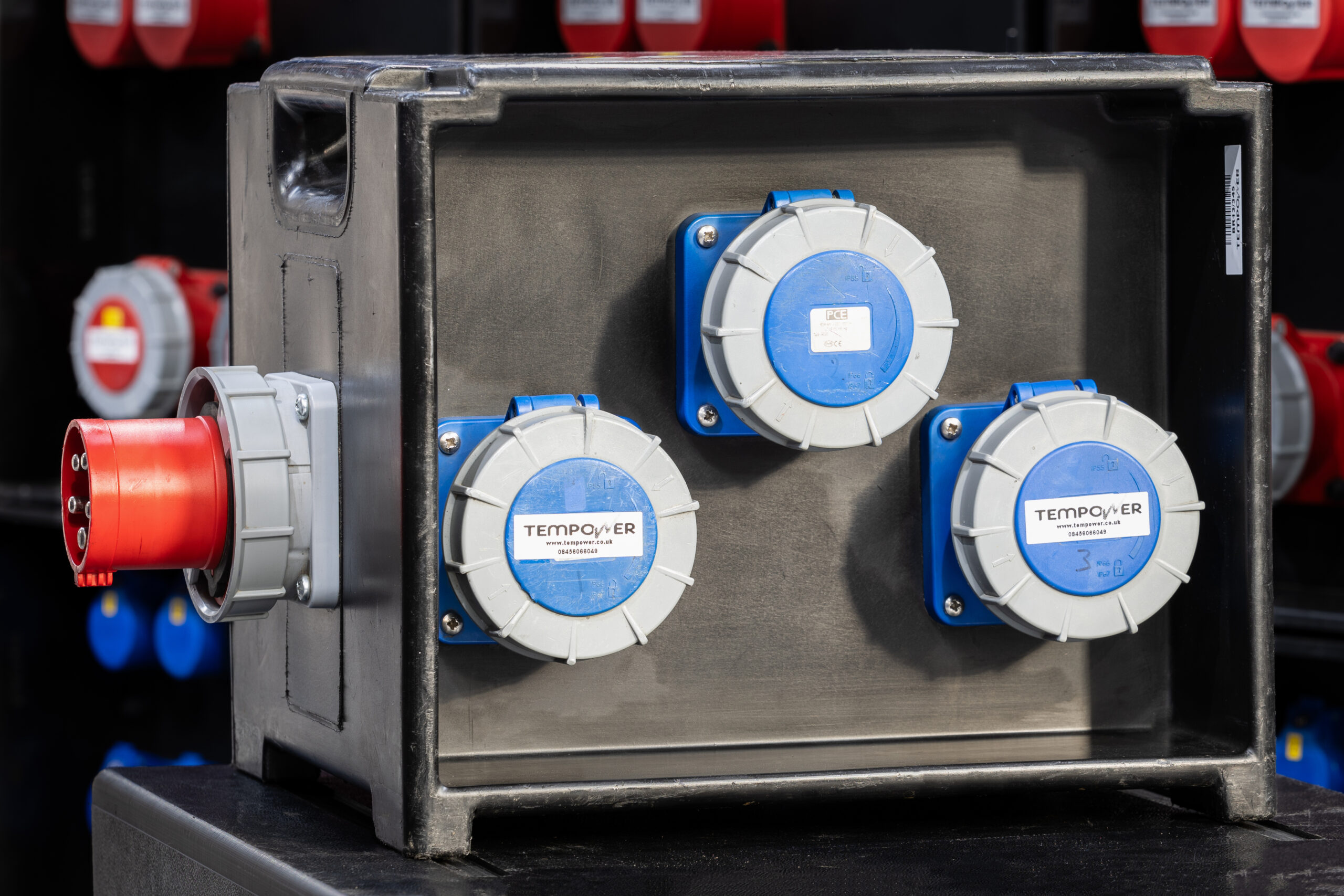

BR13A - 63/3 to 3 x 63/1 MCB with RCD (no data sheet yet)

BR14 - 63/3 to 6 x 32/1, 9 x 16/1

BR15 - 63/3 to 9 x 32/1

BR17 - 63/3 to 4 x 32/3

BR18 - 63/3 to 2 x 32/3, 6 x 32/1, 6 x 16/1

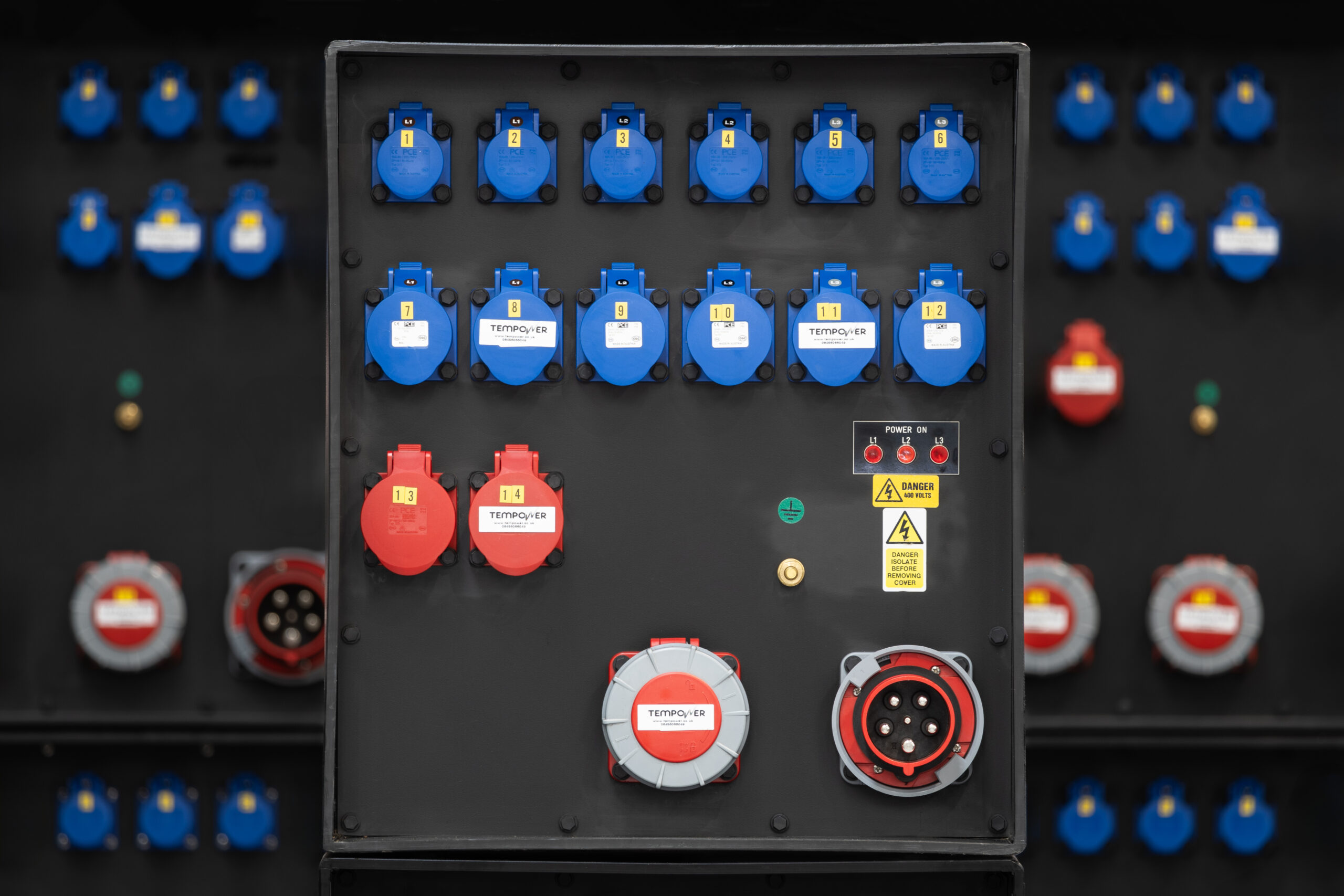

BR18B - 63/3 to 63/3 to 2 x 32/3, 6 x 32/1, 6 x 16/1 (no data sheet yet)

BR19 - 63/3 to 63/3, 6 x 32/1, 6 x 16/1

BR20 - 63/3 to 63/3, 6 x 32/1, 12 x 16/1

BR20A - 63/3 to 6 x 32/1, 12 x 16/1 (no data sheet yet)

BR22

BR23A

SP6 - 63 A/3 to 2 x 63 A/3 (no data sheet yet)

CB1R – 32/1 to 4 x 16/1 with RCD

CB_1R_Datasheet-001

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard:	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Enclosure (IP)	IP44	Amperage (A):	32A	1ph Voltage	230
Impact (IK)	IK>06	Voltage	230
Unit Max. Amps	32A	Connection	L+N+E Plug
Voltage (V)	230V
Frequency Hz	50Hz	Supply Isolation		Connectivity
Short Circuit Rating	6kA	RCCB EN	EN 61008	1x 32A Sockets	L+N+E
Continuous Load	70%	63A	30MA	4x 16A Sockets	L+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Device Standard(s)
MCB	230	C16	BS EN 61009

Download Datasheet

BB4 – 63 A/1 to 2 x 32 A/1, 4 x 16 A/1 Distro

BB4

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	500x370x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	230
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	63A	2p MCB	C63	9x 16A	L+N+E
Continuous Load	70%			2x 32A	L+N+E

Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
2x RCBOs	230	C32	30	6	BS EN 61009
9x RCBOs	230	C16	30	6	BS EN 61009

Download Datasheet

BB9 – 63/1 to 63/1 Inline RCD

BB9

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	230
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	125A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA			1x 63A Socket	L+N+E
Continuous Load	70%

Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB+Shunt with VELR	230	C63		10	BS EN 60898
MCB	230	B6		6	BS EN 60898

Download Datasheet

BR6 – 63/3 to 12 x 16/1

br6

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x330	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	240
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	240V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	4p MCB	63A	12x 16a Sockets	L+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
12x RCBO	230	C16	30	6	BS EN 60898

Download Datasheet

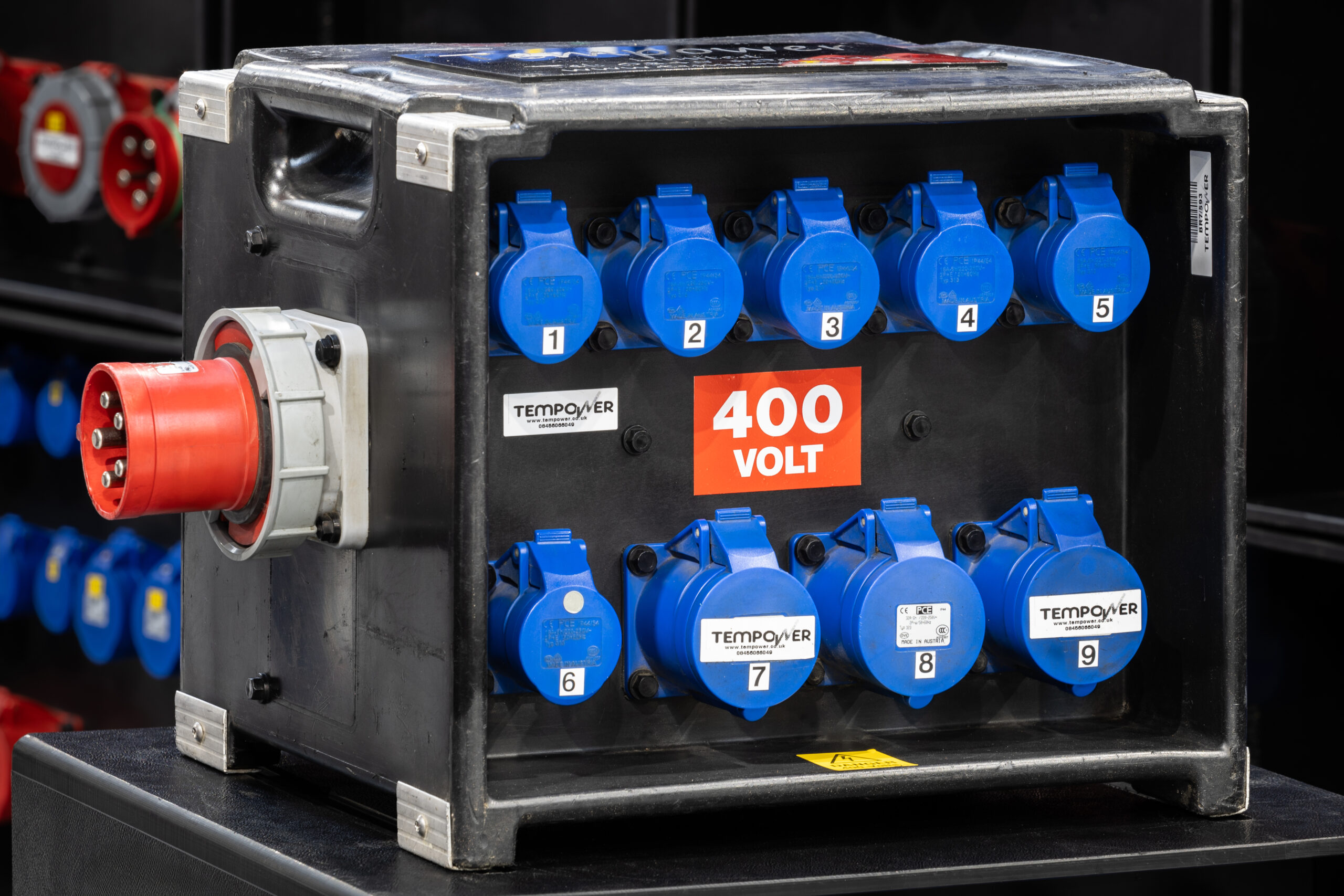

BR7 – 63/3 to 3 x 32/1, 6 x 16/1

br7

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	520x380x430	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	230
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Frequency Hz	50Hz
Voltage (V)	230V	Supply Isolation		Connectivity
Continuous Load	70%	4p MCB	63A	12x 16a Sockets	L+N+E
				3x 32a Sockets	L+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
12x RCBO	230	C16	30	6	BS EN 60898

Download Datasheet

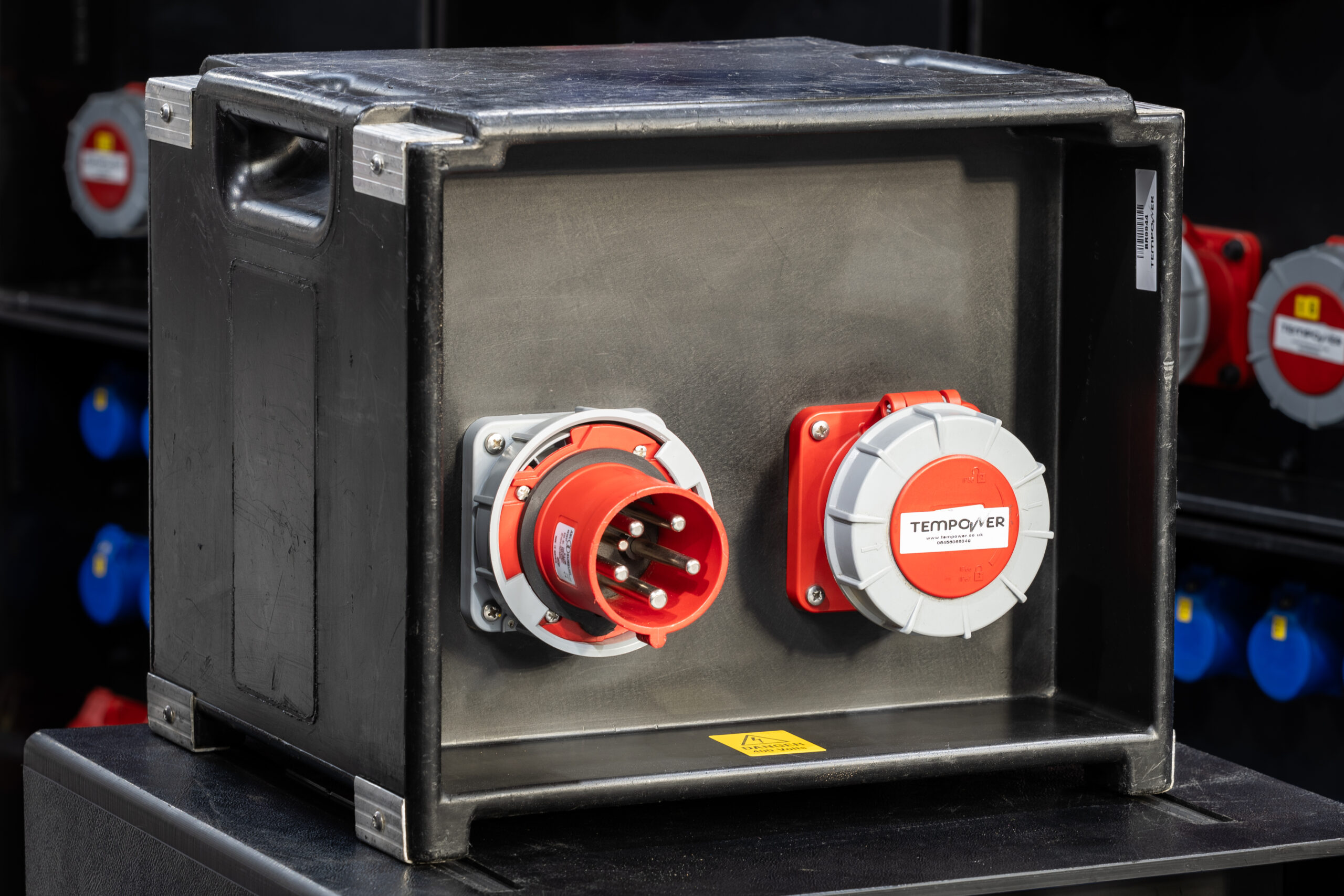

BR9 – 63/3 to 1 x 63/3 Inline RCD

br9

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x330	Amperage (A)	63	1ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	125A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA		N/A	1x 63A Socket	3ph+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB + Shunt with VELR	400	C63		10	BS EN 60898
MCB		C1		10	BS EN 60898

Download Datasheet

BR9 – 63/3 to 1 x 63/3 Inline RCD

br9

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x330	Amperage (A)	63	1ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	125A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA		N/A	1x 63A Socket	3ph+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
MCB + Shunt with VELR	400	C63		10	BS EN 60898
MCB		C1		10	BS EN 60898

Download Datasheet

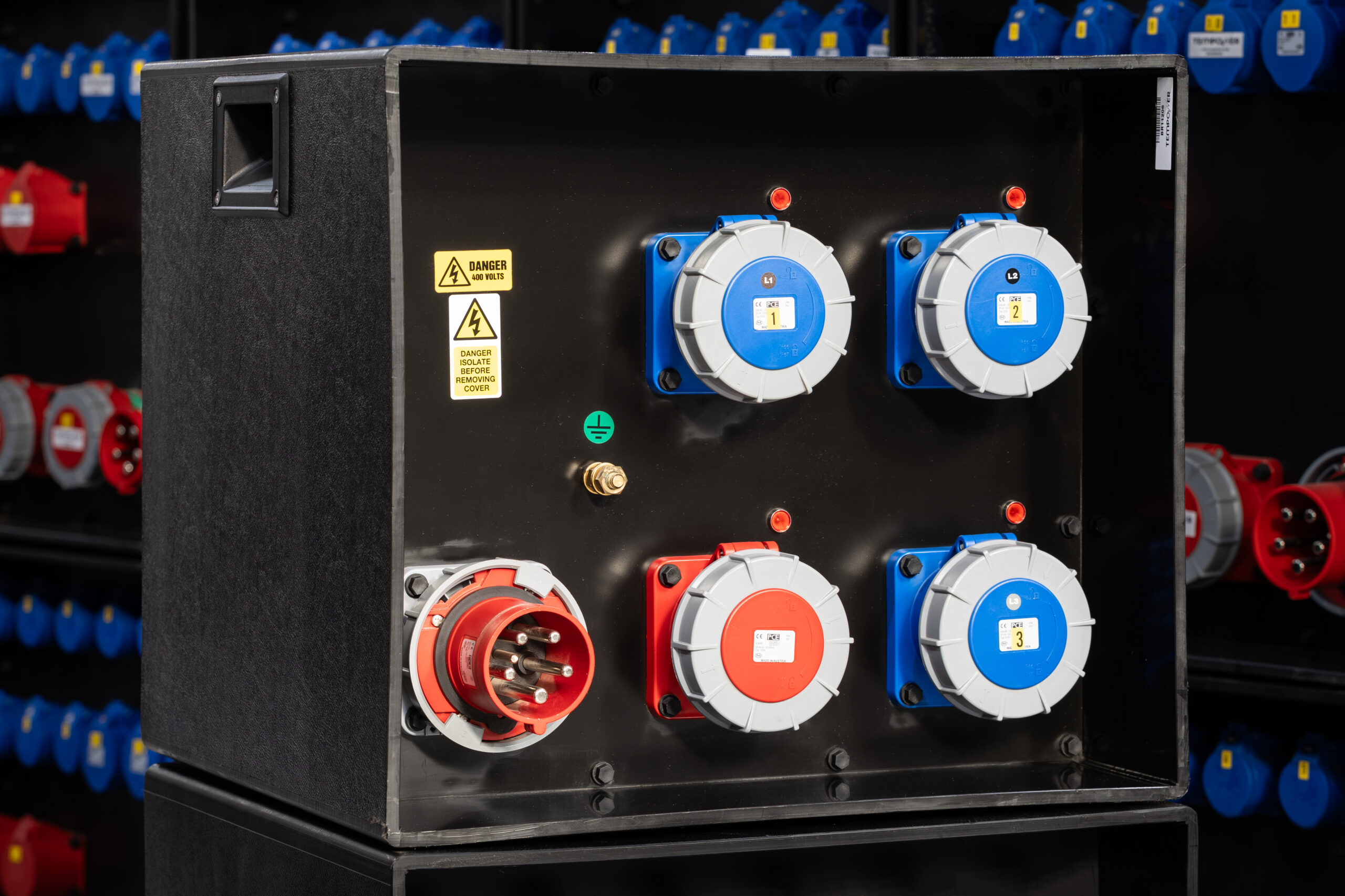

BR13 – 63/3 to 3 x 63/1 MCB

br13

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	500x350x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA		N/A	3x 63A Sockets	L+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
3x MCBs	230	C63	VIR	10	BS EN 60898

Download Datasheet

POWER DISTRIBUTION – 63 AMP

BR14 – 63/3 to 6 x 32/1, 9 x 16/1

br14

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	500x350x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA		N/A	3x 63A Sockets	L+N+E
Continuous Load	70%			6x 32A Sockets	L+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
9x RCBOs	230	C16	30	6	BS EN 61009
6x RCBOs	230	C32	30	6	BS EN 61009

Download Datasheet

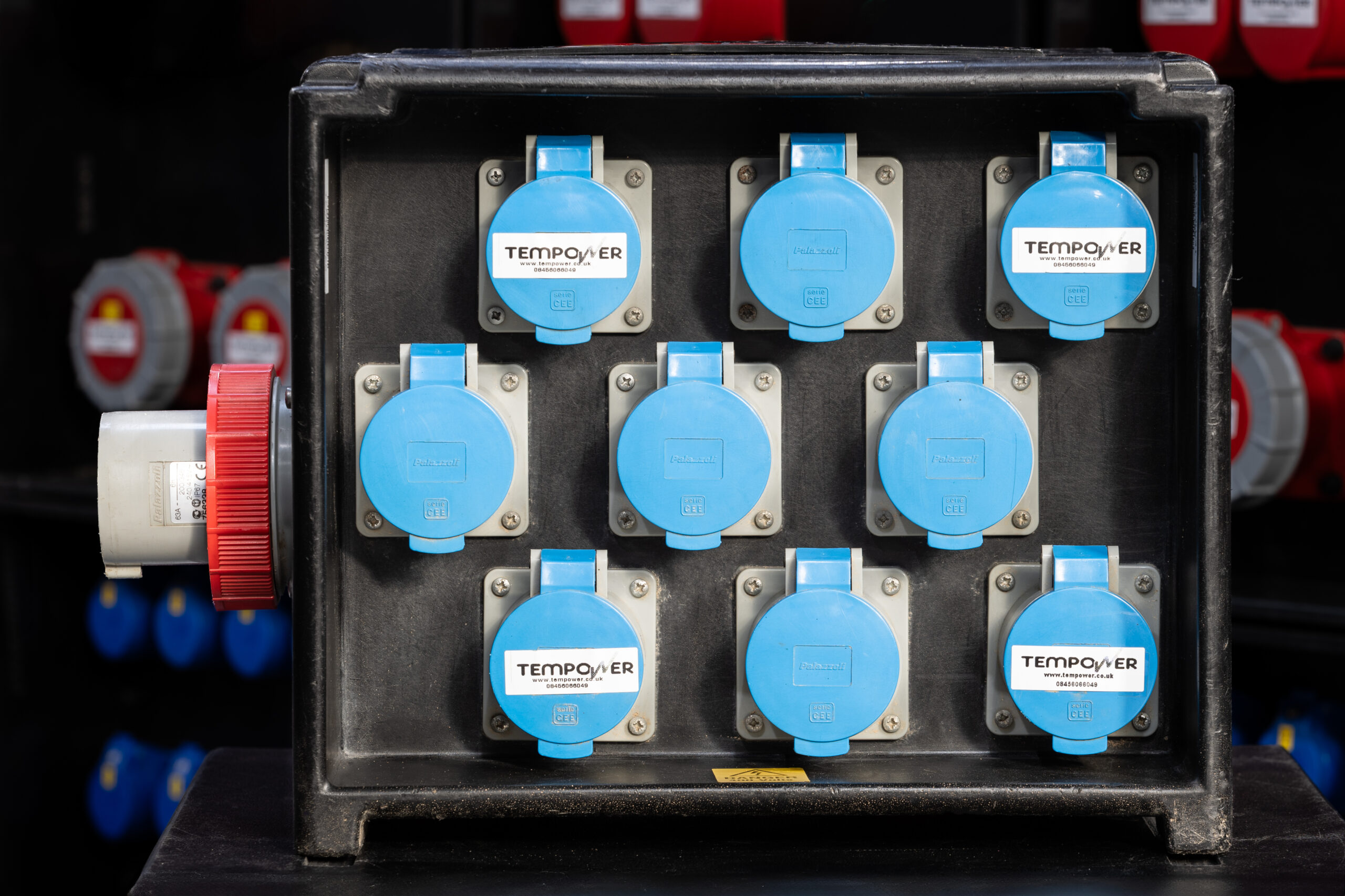

BR15 – 63/3 to 9 x 32/1

br15

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	L+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	MCB	63A	9x 32A Sockets	L+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
1x MCB	400	C63		10	BS EN 60898
9x RCBOs	230	C32	30	6	BS EN 61009

Download Datasheet

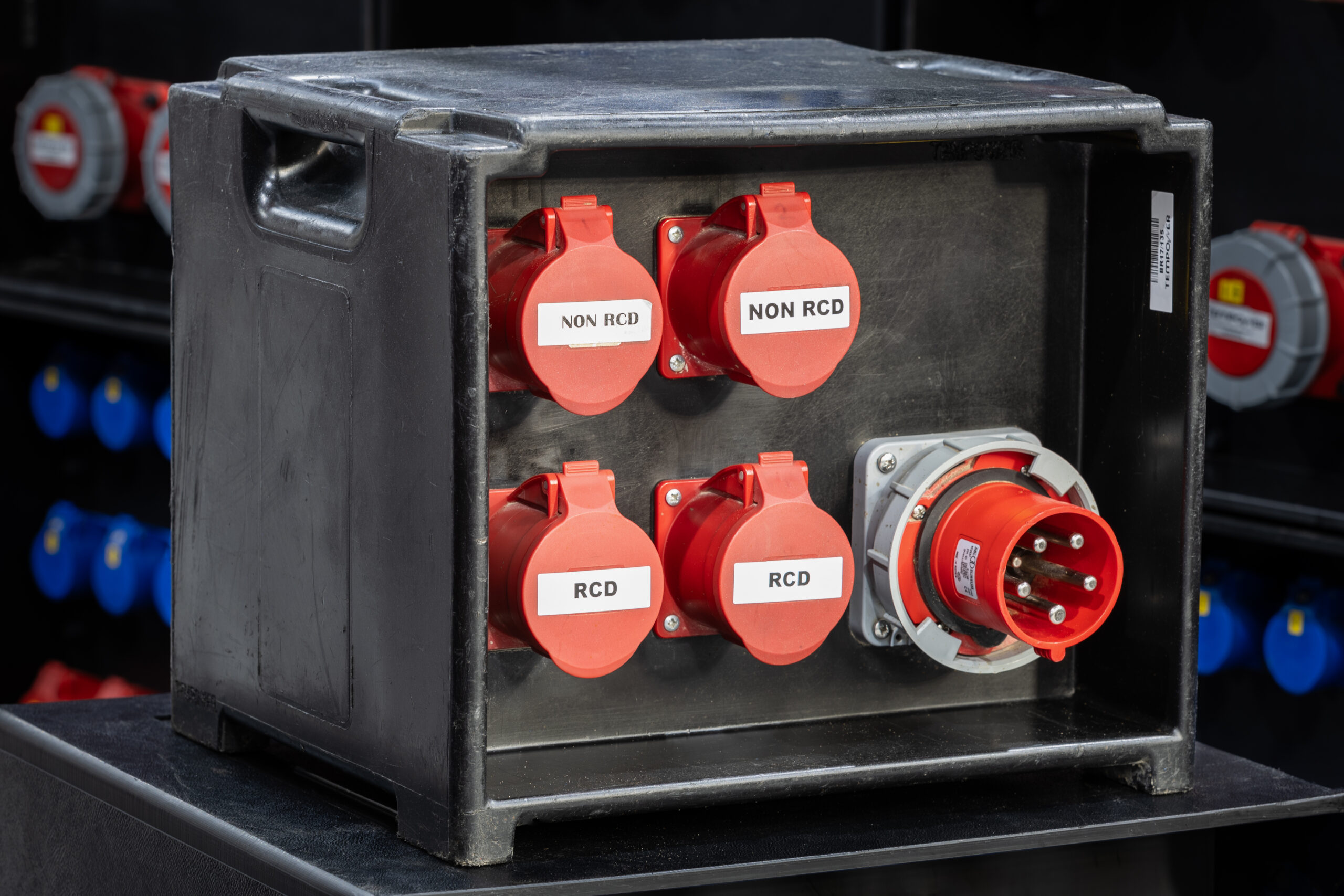

BR17 – 63/3 to 4 x 32/3

br17

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x360x340	Amperage (A)	63	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	3p MCB	63A	4x 32A Sockets	3ph+N+E
Continuous Load	70%
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
4x RCBOs	400	C32	30	10	BS EN 61009

Download Datasheet

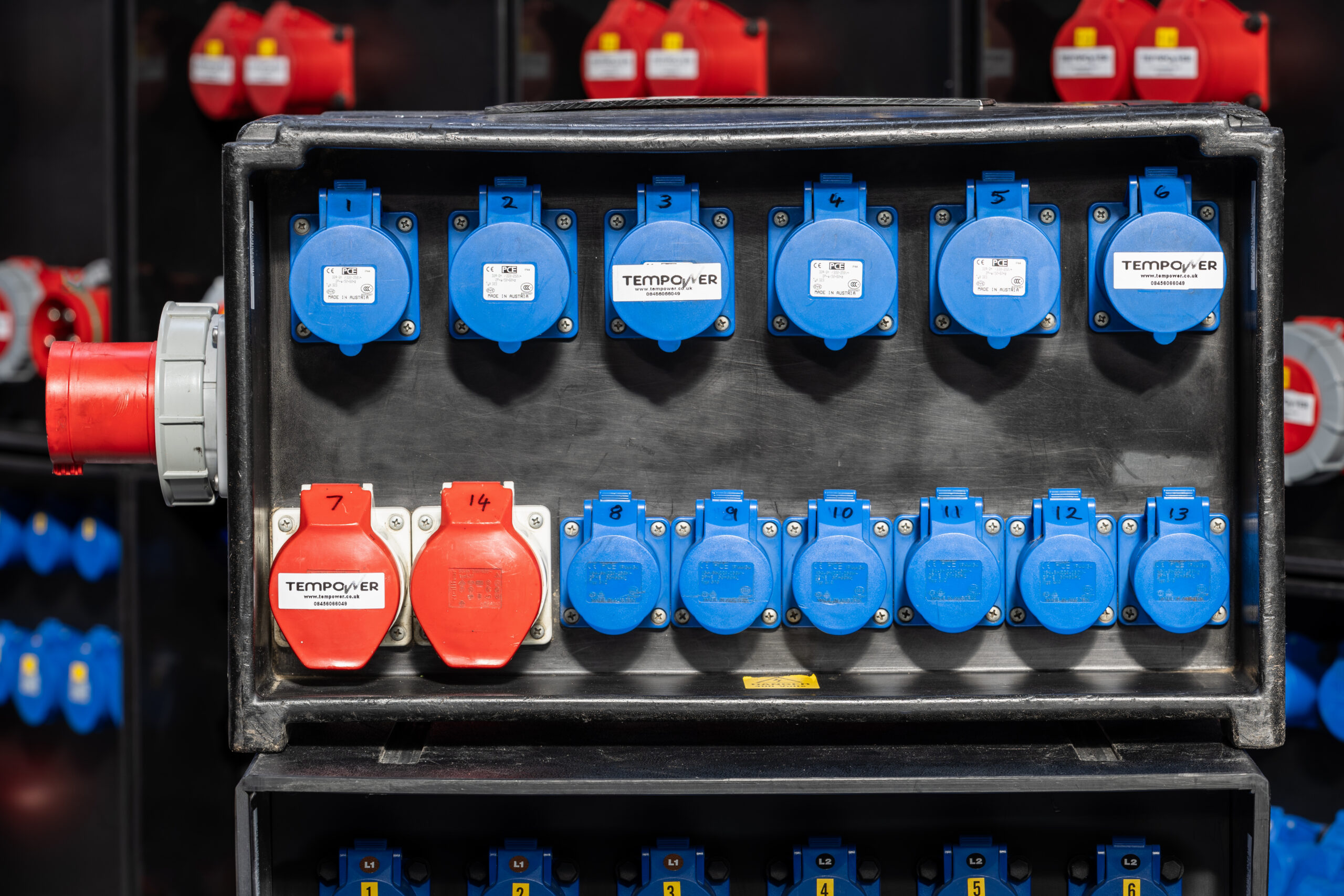

BR18 – 63/3 to 2 x 32/3, 6 x 32/1, 6 x 16/1

br18

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	560x350x330	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	4p MCB TYPE C	63A	6x 16A Sockets	L+N+E
Continuous Load	70%			6x 32A Sockets	L+N+E
				2x 32A Sockets	3ph+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
2x RCBOs	400	C32	30	10	BS EN 60898
12x RCBOs	230	C32	30	6	BS EN 60898

Download Datasheet

POWER DISTRIBUTION – 63 AMP

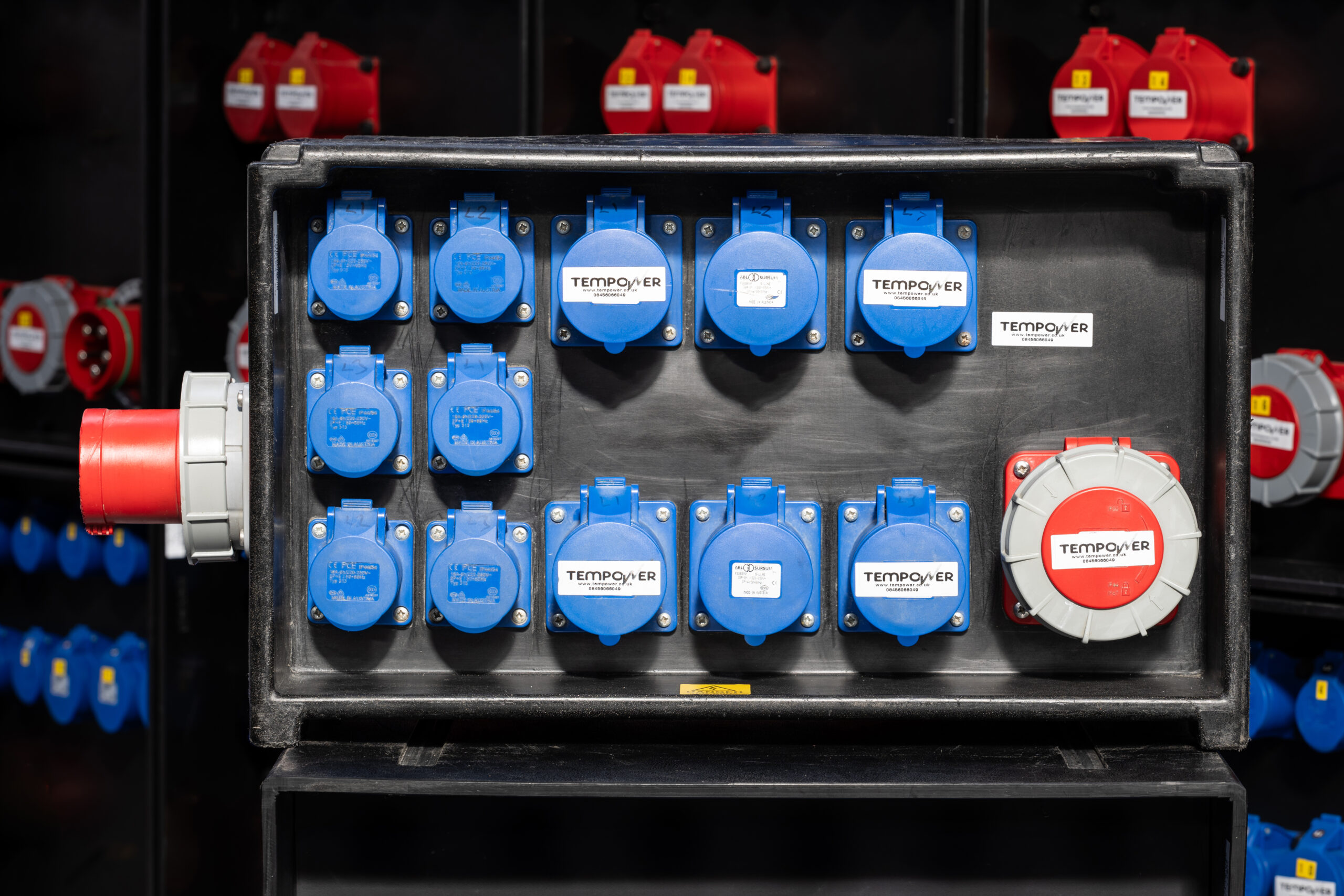

BR19 – 63/3 to 63/3, 6 x 32/1, 6 x 16/1

br19

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	560x350x340	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A		L+N+E
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	4p MCB	63A	1x 63A Socket	3ph+N+E
Continuous Load	70%			6x 32A Sockets	L+N+E
				6x 16A Sockets	L+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
6x RCBOs	230	C32	30	6	BS EN 61009
6x RCBOs	230	C16	30	6	BS EN 61009

Download Datasheet

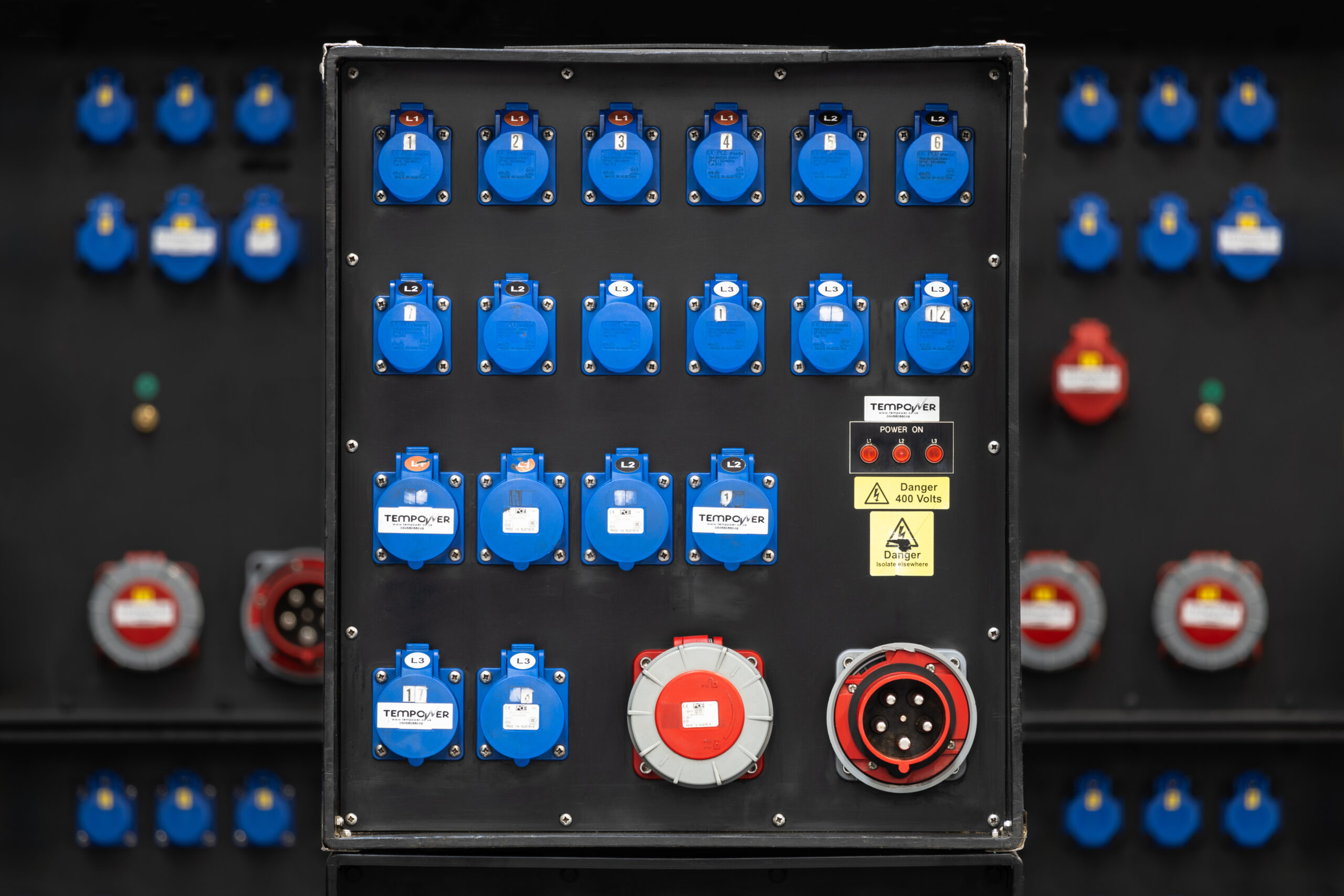

BR20 – 63/3 to 63/3, 6 x 32/1, 12 x 16/1

br20

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	570x420x565	Amperage (A)	63	1ph Voltage	230
Enclosure (IP)	IP44	Voltage	400	3ph Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A		L+N+E
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Unit Max. Amps	6kA	3P MCB	63A	1x 63A Socket	3ph+N+E
Continuous Load	70%			6x 32A Sockets	L+N+E
				6x 16A Sockets	L+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
6x RCBOs	230	C32	30	6	BS EN 61009
12x RCBOs	230	C16	30	6	BS EN 61009

Download Datasheet

POWER DISTRIBUTION – 63 AMP

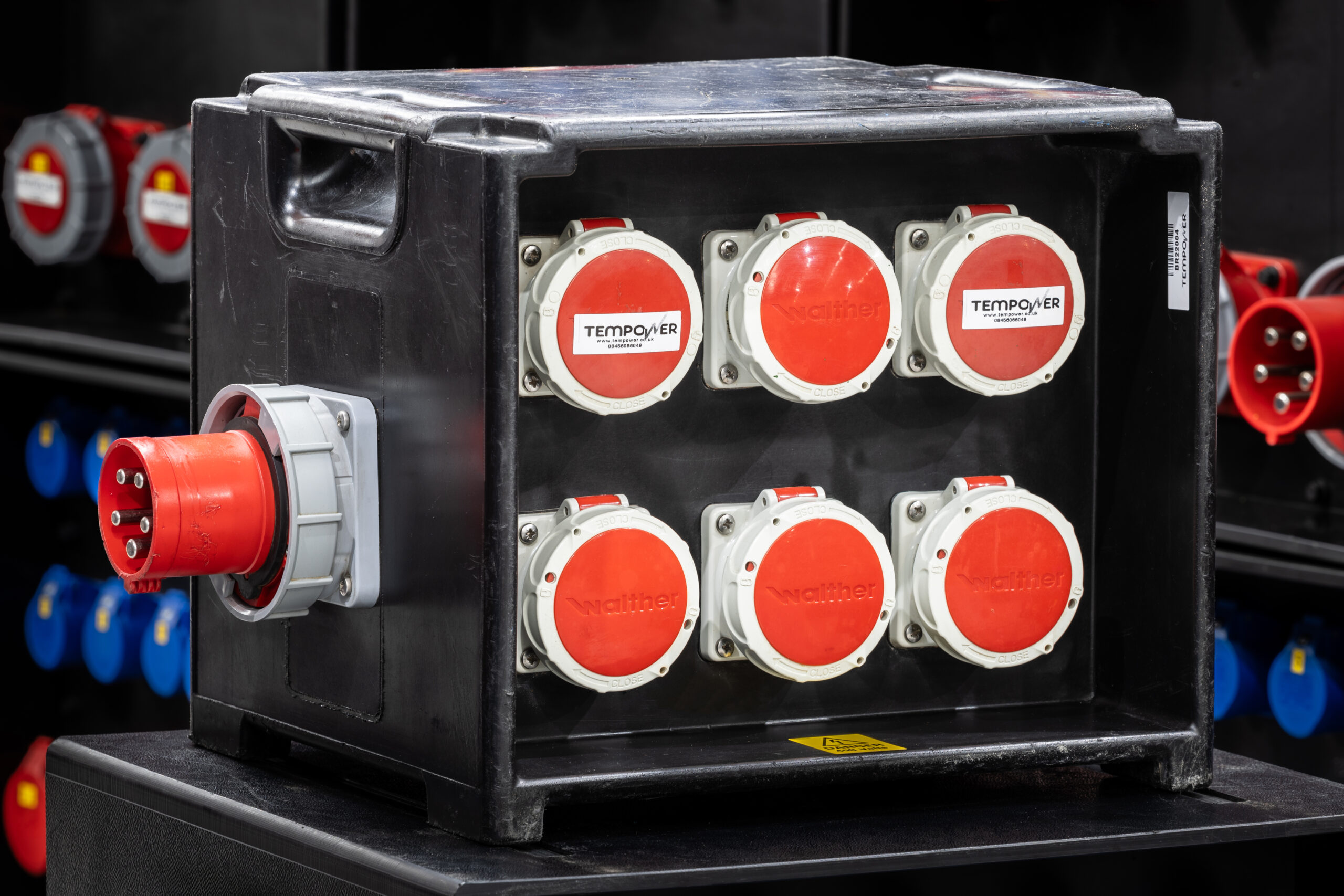

BR22

br22

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x340	Amperage (A)	63	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Continuous Load	70%	4p MCB	63A	6x 16a Sockets	3ph+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
RCBO	400	C16	30	6	BS EN 61009-1

Download Datasheet

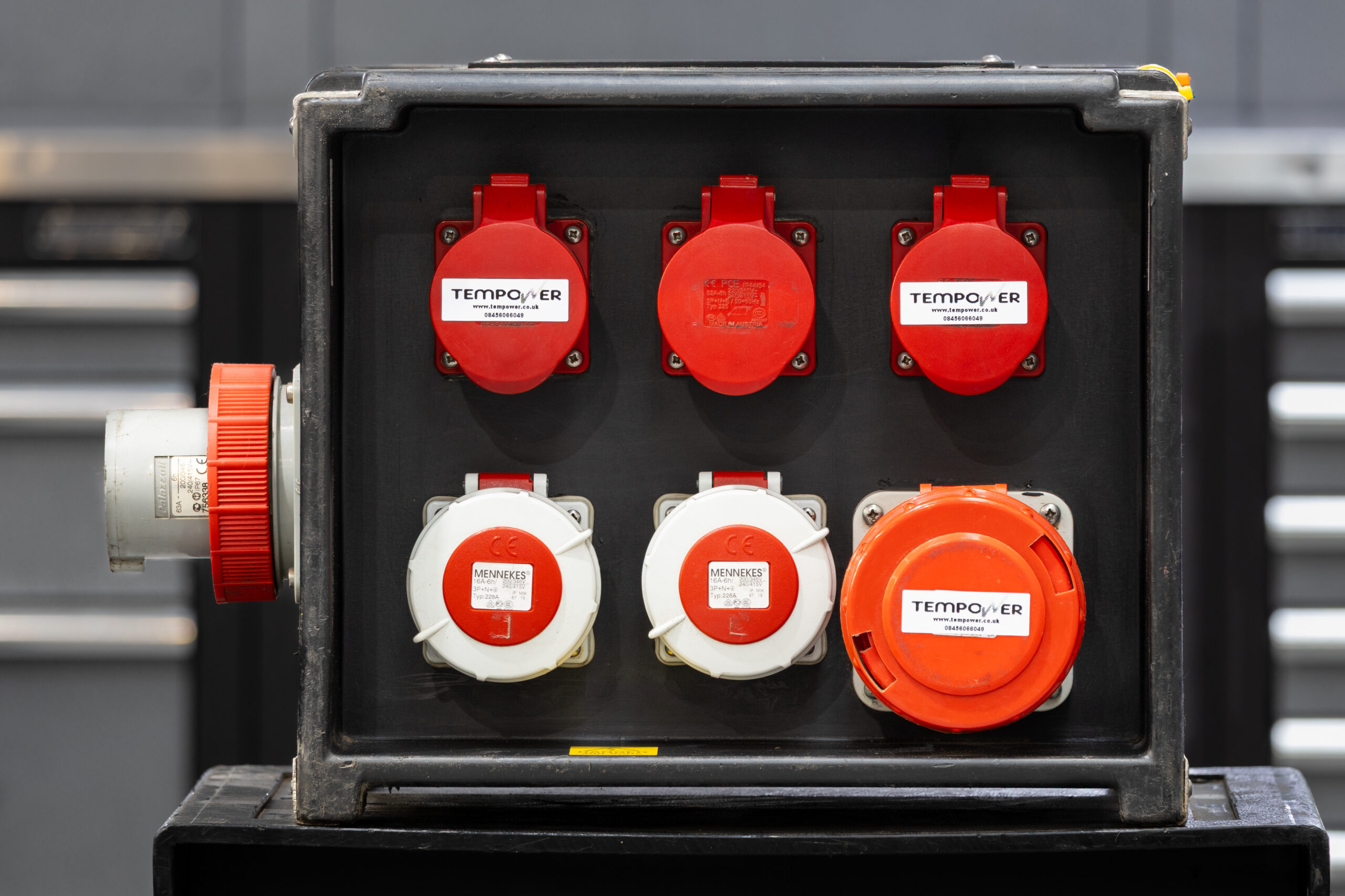

BR23A

br23a

Unit Specification		Supply Connection		Load Connection
Unit Standard	BS EN 61439-3	Inlet Standard	BS EN 60309-1+2	Outlets Standard	BS EN 60309-1+2
Approx Dim: WxDxH	400x350x340	Amperage (A)	63	3ph Voltage	400
Enclosure (IP)	IP44	Voltage	400
Impact (IK)	IK>06	Connection	3ph+N+E Appliance inlet
Unit Max. Amps	63A
Frequency Hz	50Hz
Voltage (V)	400V	Supply Isolation		Connectivity
Continuous Load	70%	4p MCB	63A	5x 32a Sockets	3ph+N+E
				1x 63a Socket	3ph+N+E
Protection Devices
Device	Voltage	Rating Type & Amperage	Character – mA	kA – Short Circuit Rating	Device Standard(s)
3x RCBO	400	32C	30	6	BS EN 61009-1
2x RCBO	400	16C	30	6	BS EN 61009-1

Download Datasheet

POWER DISTRIBUTION – 63 AMP

Tempower LTD, Phoenix House, Phoenix Road, Haverhill CB9 7AE Tel: +44 (0)1440 762 905 Email: hire@tempower.co.uk
Company No: 06404735 VAT No: 976 8822 52
