| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 570x350x330 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Continuous Load | 70% | 125A Socket | 3ph+N+E | ||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
Inline Current Meter |
|||||
Tel: +44 (0)1440 762 905
Tel: +44 (0)1440 762 905

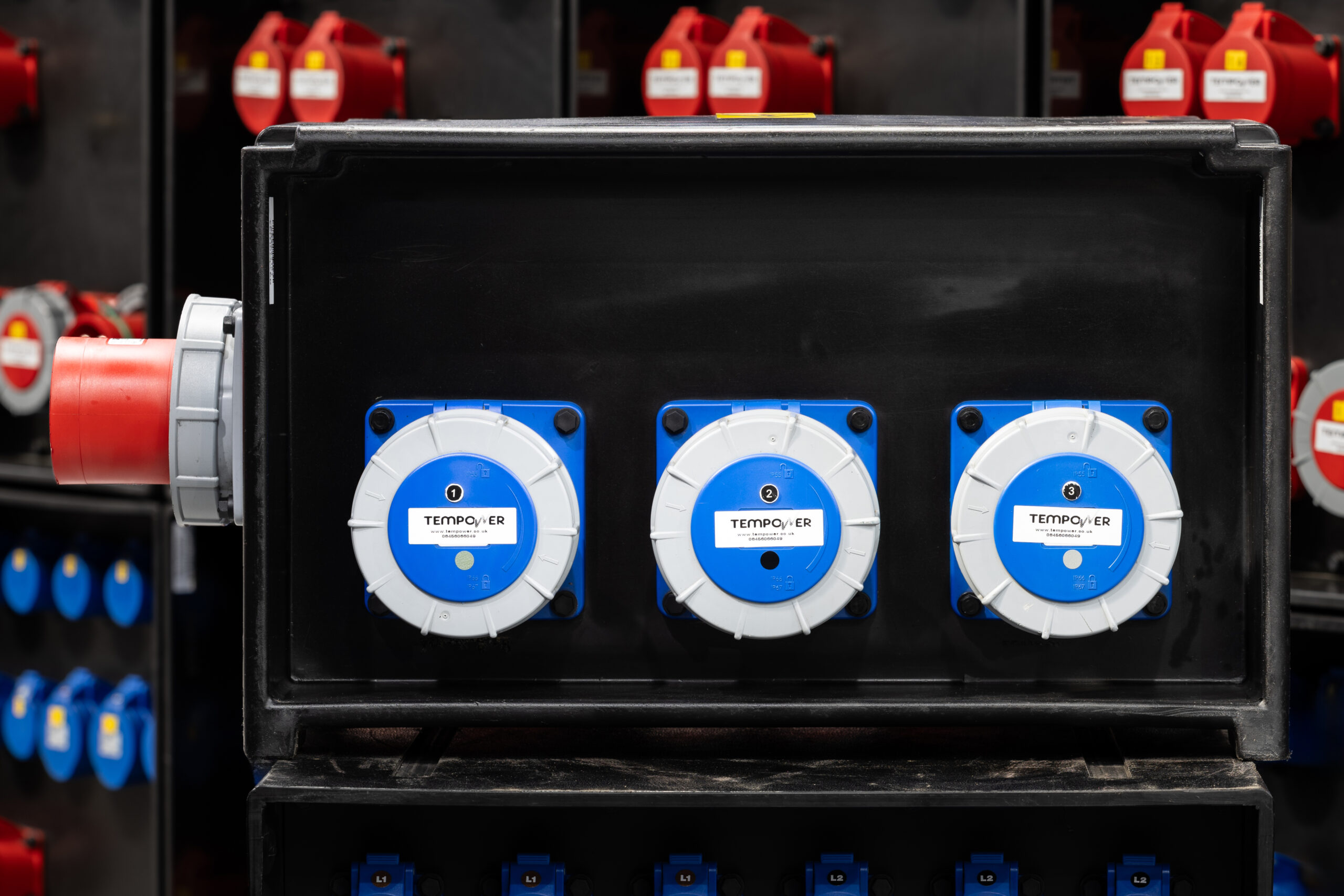

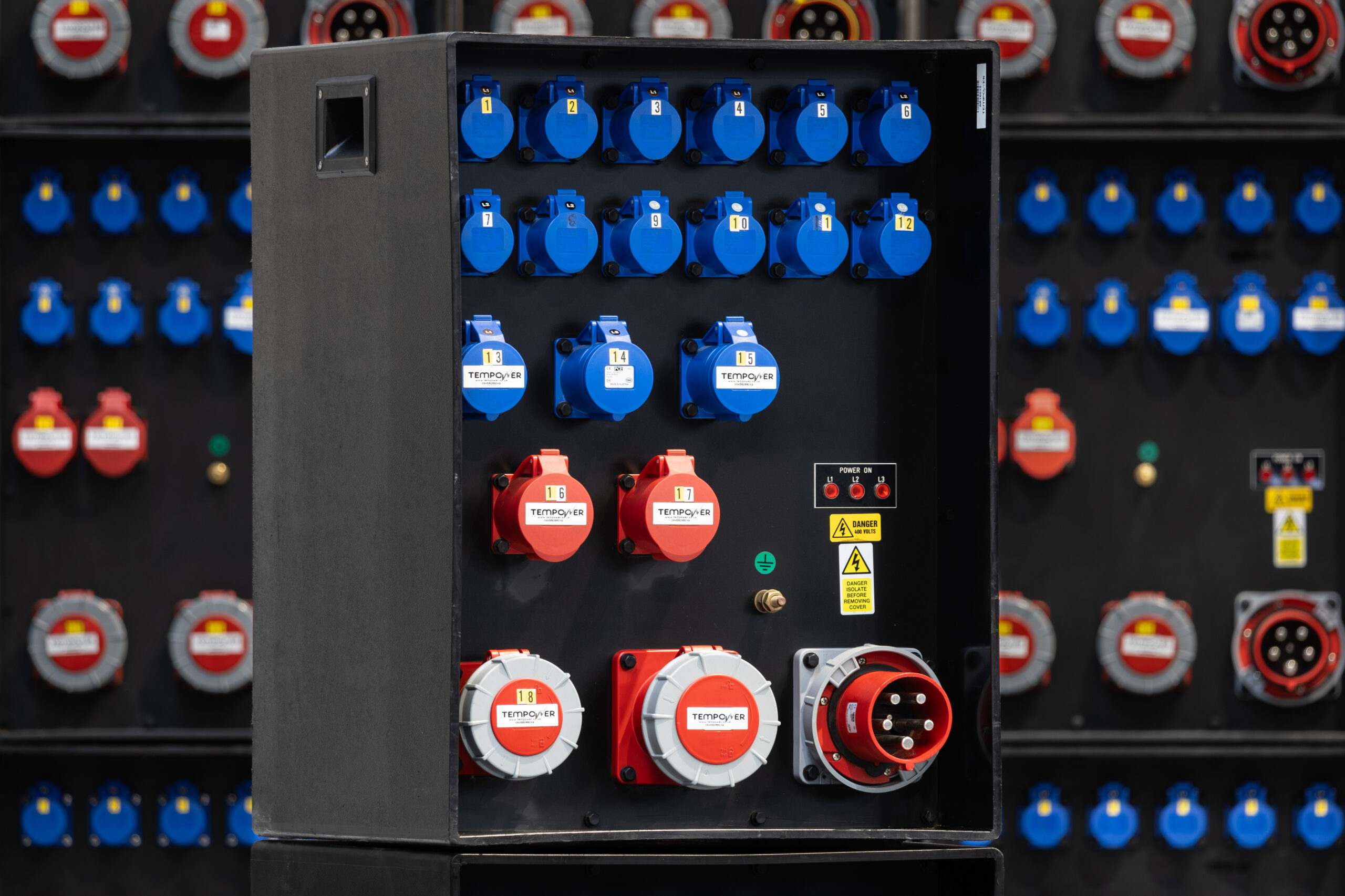

POWER DISTRIBUTION – 125 AMP
Ar1m

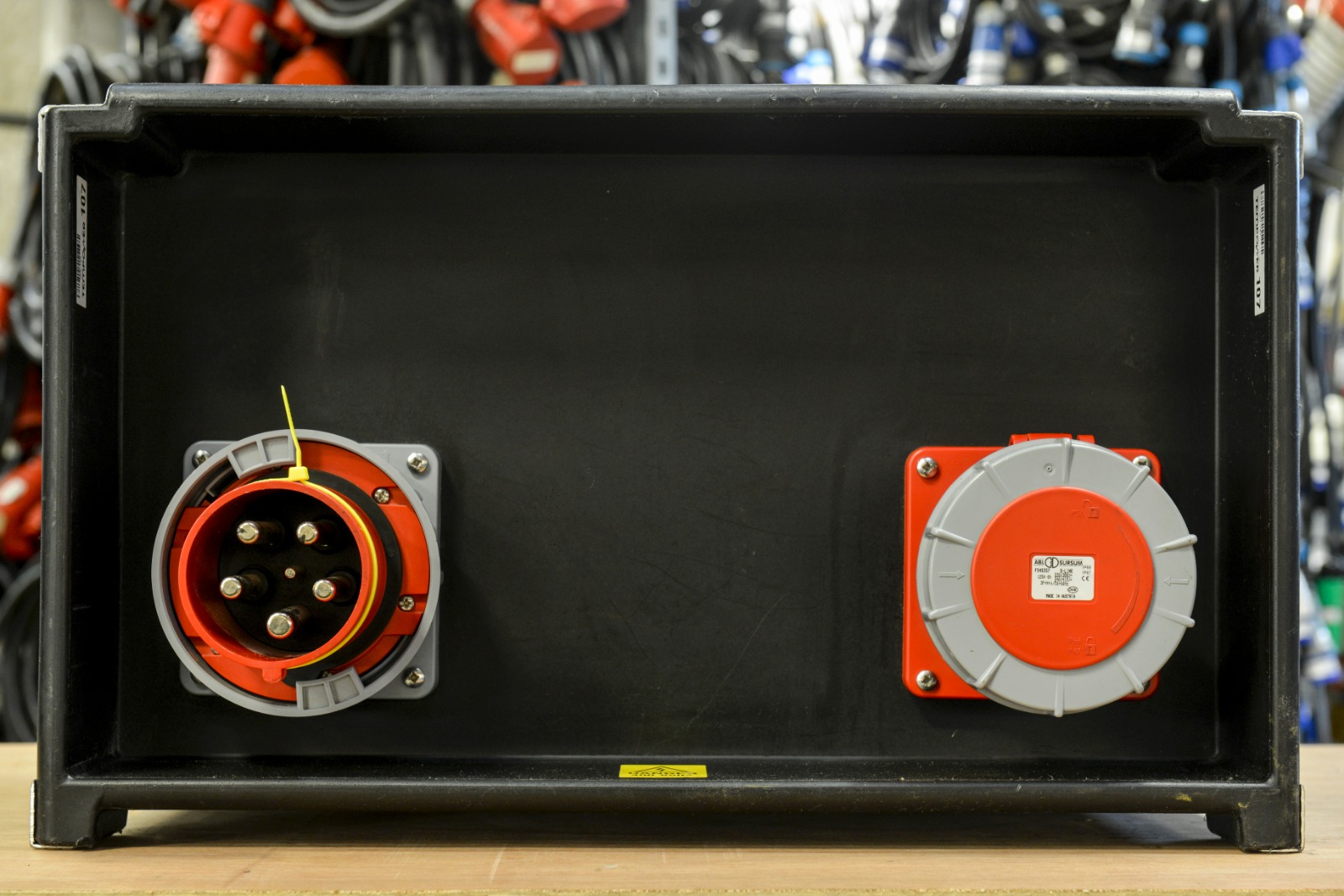

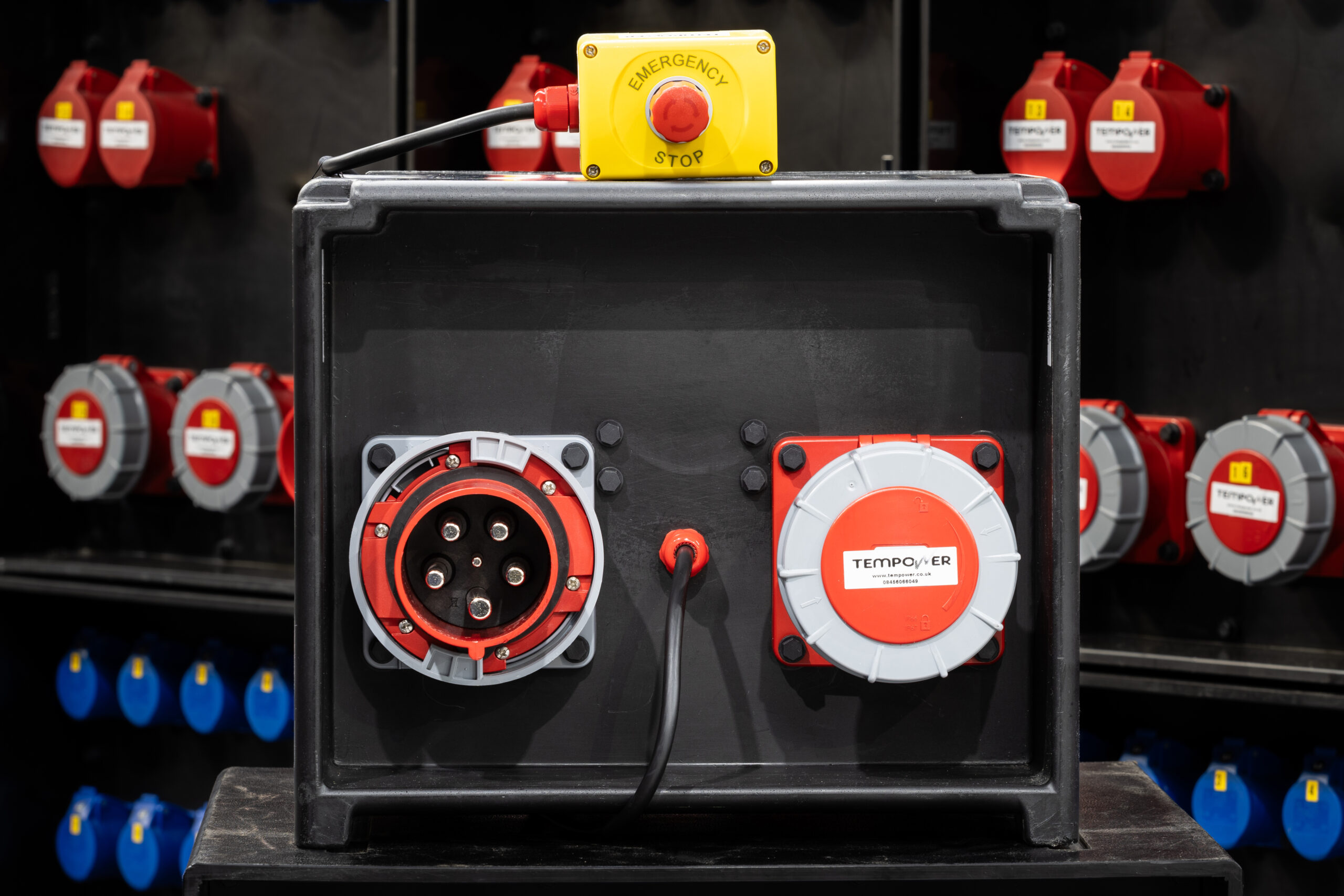

Ar9 – 123/3 to 125/3
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 560x350x330 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | ||||
| Short Circuit Rating: | 10kA | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Continuous Load | 70% | 125A Socket | 3ph+N+E | ||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 1x MCB | 400 | C125 | 100 | 10 | BS EN 60898 |
| +Shunt with VELR | |||||

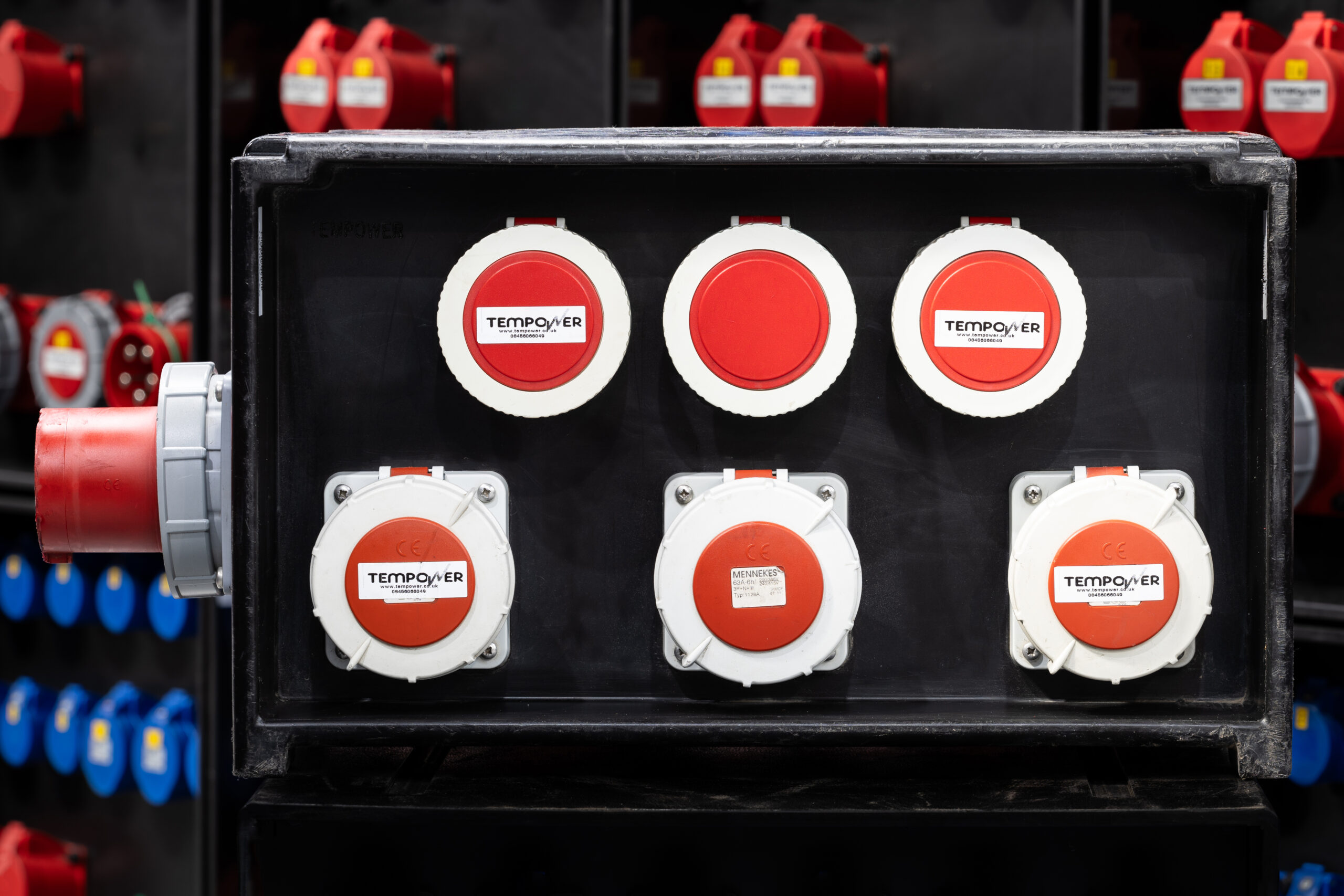

AR28 – 125/3 to 3 x 63/3, 3 x 32/3
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 560x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | ||||
| Short Circuit Rating: | 6kA | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Continuous Load | 70% | 3p MCB | 125A | 3x 63A Sockets | 3ph+N+E |
| 3x 32A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 1x MCB | 400 | C125 | 6 | BS EN 60898 | |
| 3x RCBO | 400 | C32 | 30 | 10 | BS EN 61009 |
| 3x RCCB | 400 | 63A | 10 | 3 | BS EN 60898 |
| 3x MCB | 400 | C63 | VIR | 10 | BS EN 60898 |

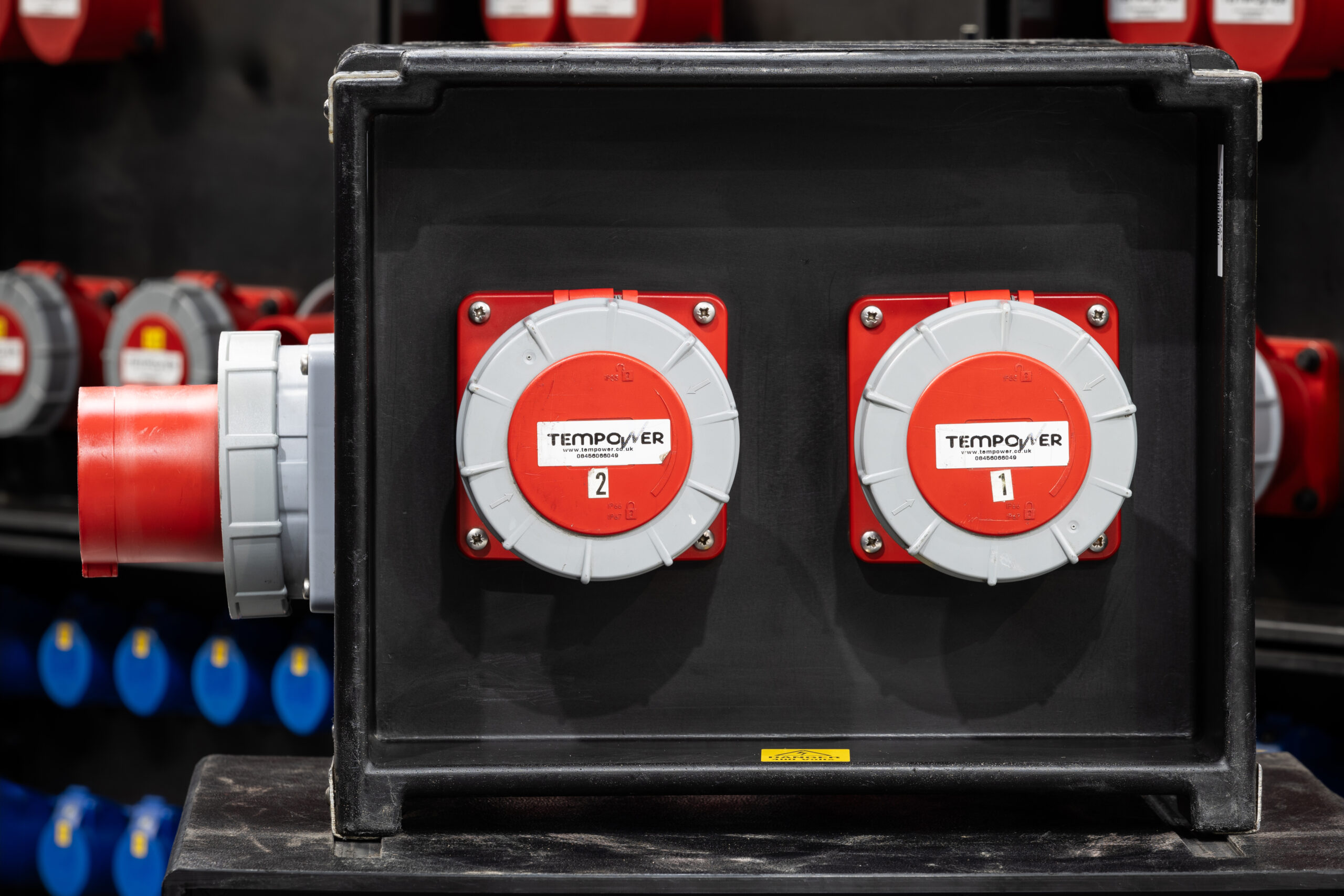

AR29
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 400x350x330 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Continuous Load | 70% | N/A | 2x 125a sockets | 3ph+N+E | |
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| MCB | 400 | C125 | N/A | 10 | BS EN 60898 |

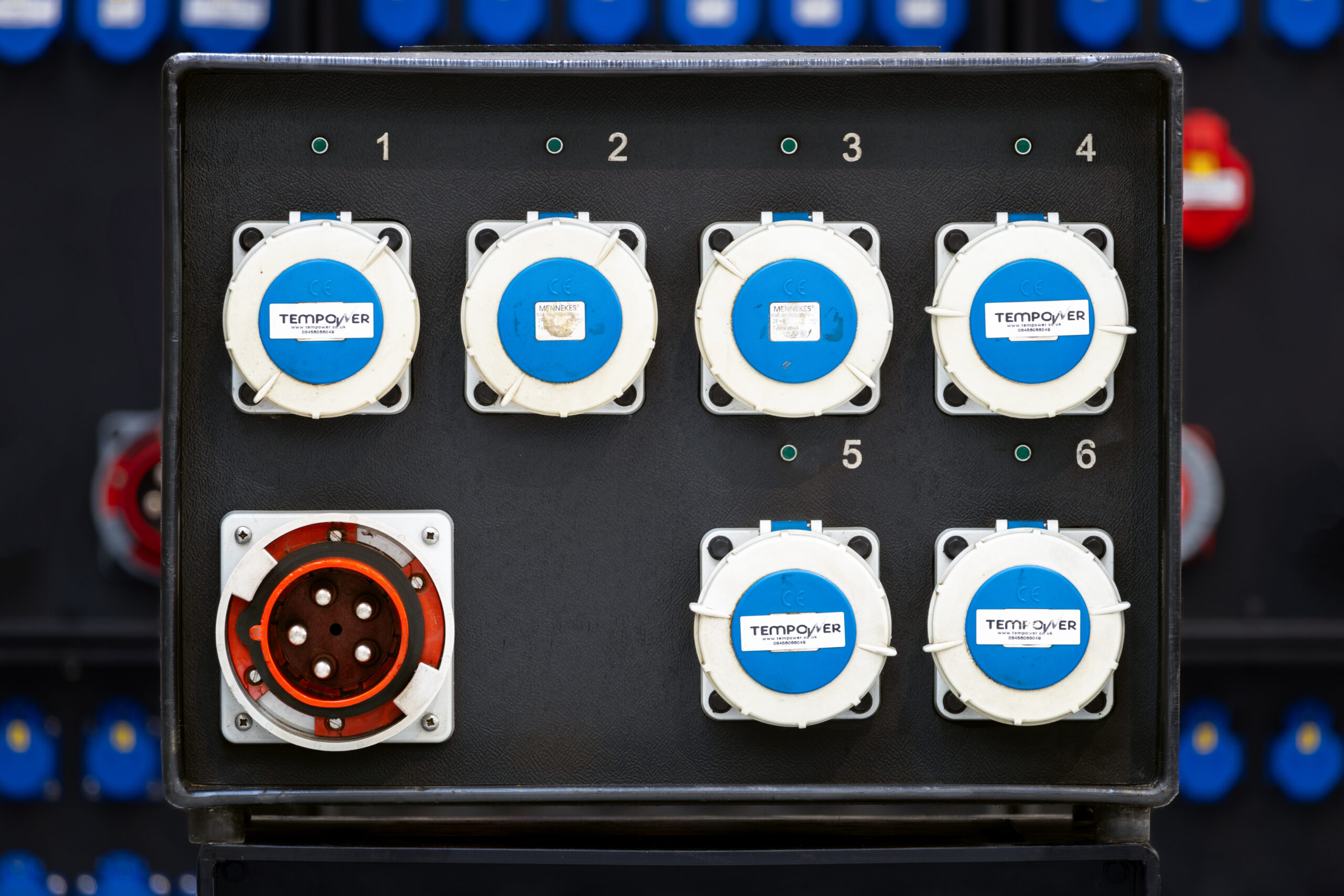

AR31
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 570x350x340 | Amperage (A) | 125 | 1ph Voltage: | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | ||||
| Short Circuit Rating | 6kA | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Continuous Load | 70% | 4p MCB | 125A | 6x 63A | L+N+E |
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| MCB | 400 | D125 | 6 | BS EN 60898 | |
| 6x MCBs | 230 | C63 | VIR | 10 | BS EN 60898 |
| + 6x Shunts with VELRs | 230 | ||||
AR32
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 535x470x610 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Frequency Hz | 50Hz | Supply Isolation | Connectivity | ||
| Short Circuit Rating | 6kA | 4p MCB | 125A | 6x 63A | 3ph+N+E |
| Voltage (V) | 400V | 2x 32A Socket | 3ph+N+E | ||
| Continuous Load | 70% | 12x 32A Socket | L+N+E | ||
| 6x 16A Socket | L+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 1x MCB | 400 | C125 | 15 | BS EN 60898 | |
| 6x RCBOs | 230 | C16 | 30 | 10 | BS EN 61009 |
| 12x RCBOs | 230 | C32 | 30 | 10 | BS EN 61009 |
| 2x RCBOs | 400 | C32 | 30 | 6 | BS EN 61009 |
| 1x MCB | 400 | C63 | 10 | BS EN 60898 | |
| +Shunt with VELR | |||||
| 2x MCBs to VELR | C1 | BS EN 60898 | |||

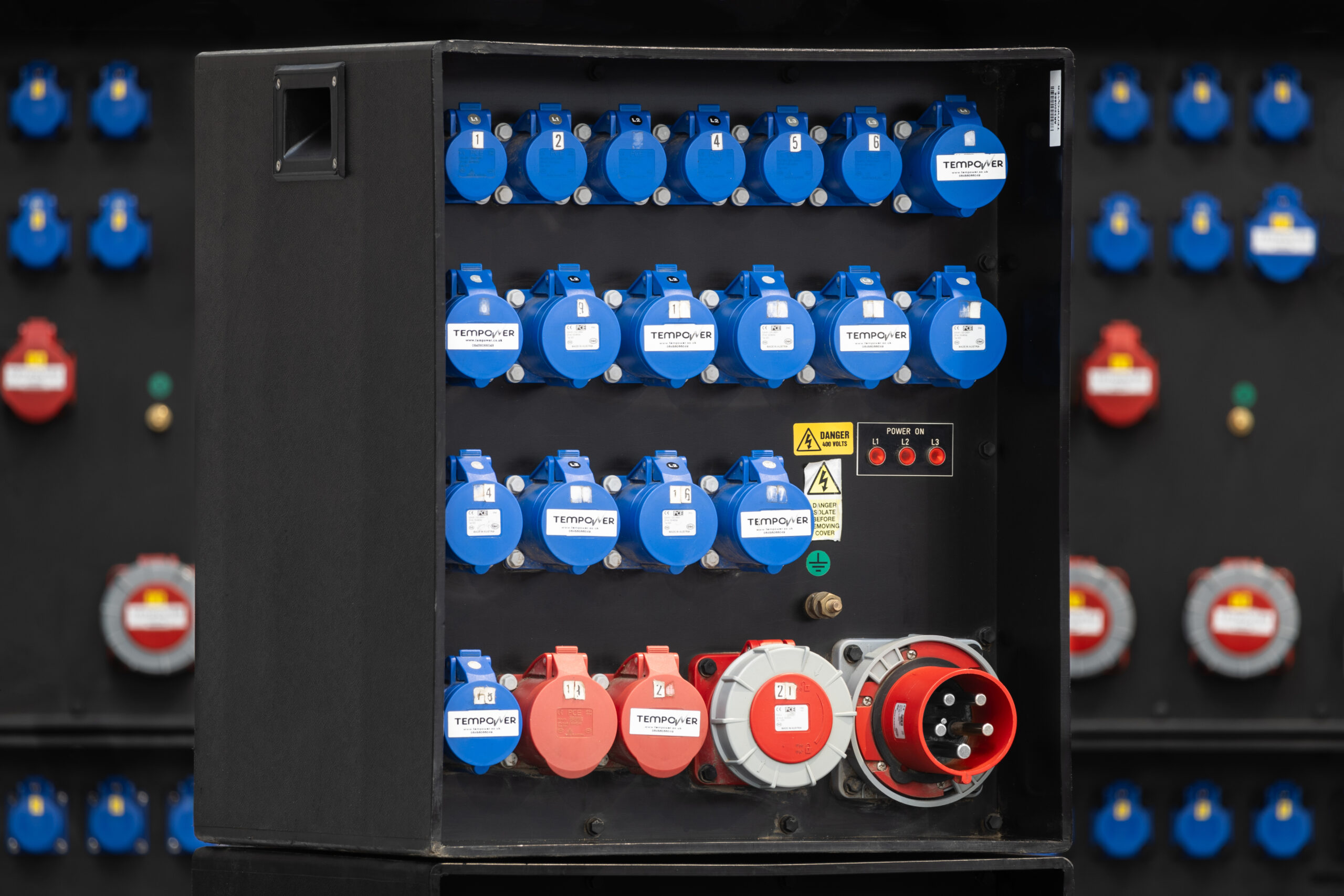

AR32A
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 570x360x540 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | 4p MCB | 125A | 6x 16A Socket | L+N+E |
| Continuous Load | 70% | 12x 32A Sockett | L+N+E | ||
| 2x 32A Socket | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 1x MCB | 400 | C125 | 15 | BS EN 60898 | |
| 6x RCBOs | 230 | C16 | 30 | 10 | BS EN 61009 |
| 12x RCBOs | 230 | C32 | 30 | 10 | BS EN 61009 |
| 2x RCBOs | 400 | C32 | 30 | 6 | BS EN 61009 |
| +Shunt with VELR | |||||
| 2x MCBs to VELR | C1 | BS EN 60898 | |||

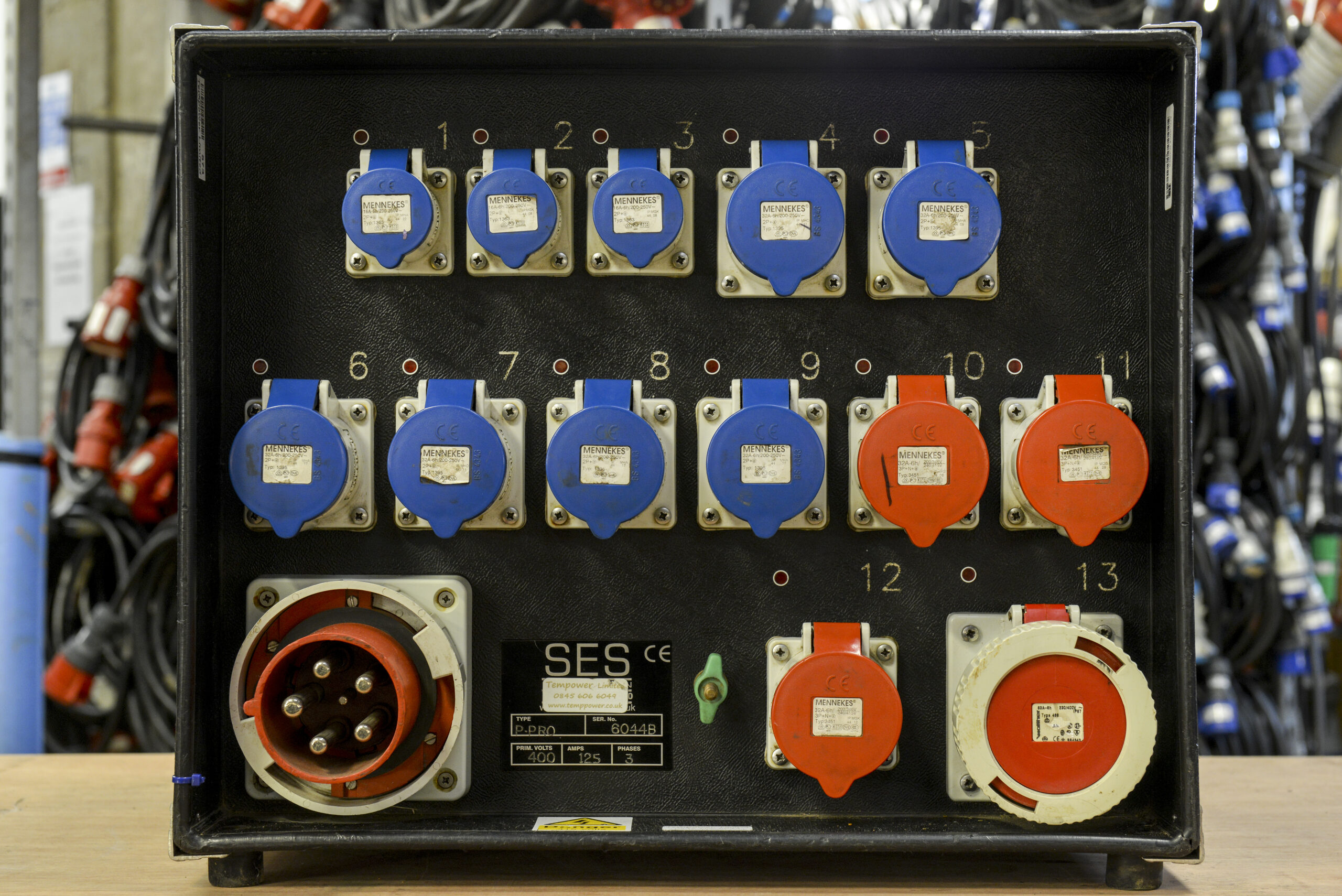

AR33
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 570x360x540 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | N/A | 3x 16A sockets | L+N+E | |
| Continuous Load | 70% | 6x 32A Sockets | L+N+E | ||
| Short Circuit Rating | 6kA | 3x 32A Sockets | 3ph+N+E | ||
| 1x 63A Socket | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 3x RCBOs | 230 | C16 | 30 | 10 | BS EN 61009 |
| 6x RCBOs | 230 | C32 | 30 | 10 | BS EN 61009 |
| 3x MCBs | 400 | C32 | 6 | BS EN 60898 | |
| MCB | 400 | C63 | 6 | BS EN 60898 | |
| 3x RCCB | 400 | 40A | 30 | 10 | BS EN 61008 |
| 1x RCCB | 400 | 63A | 10 | 10 | BS EN 61008 |

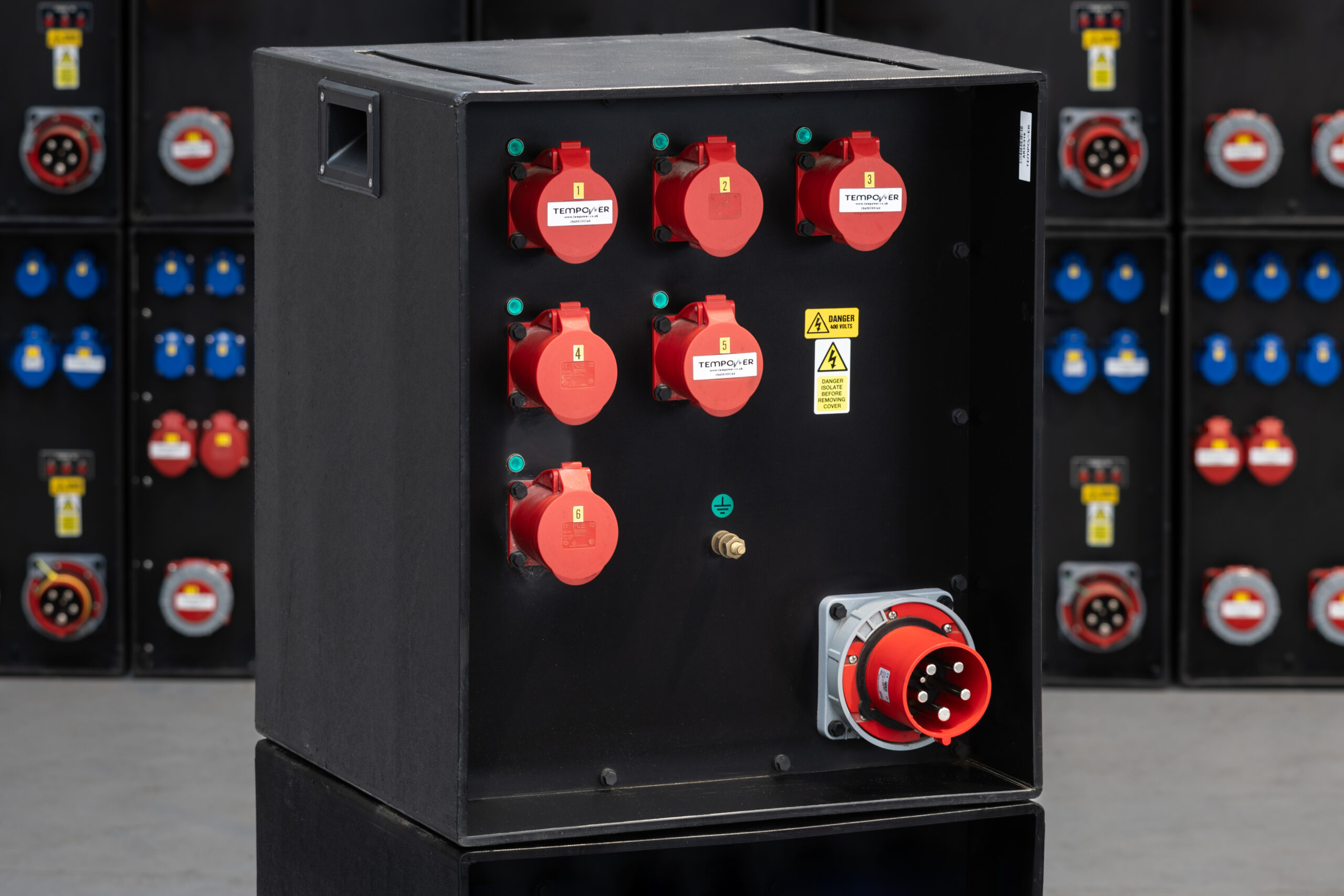

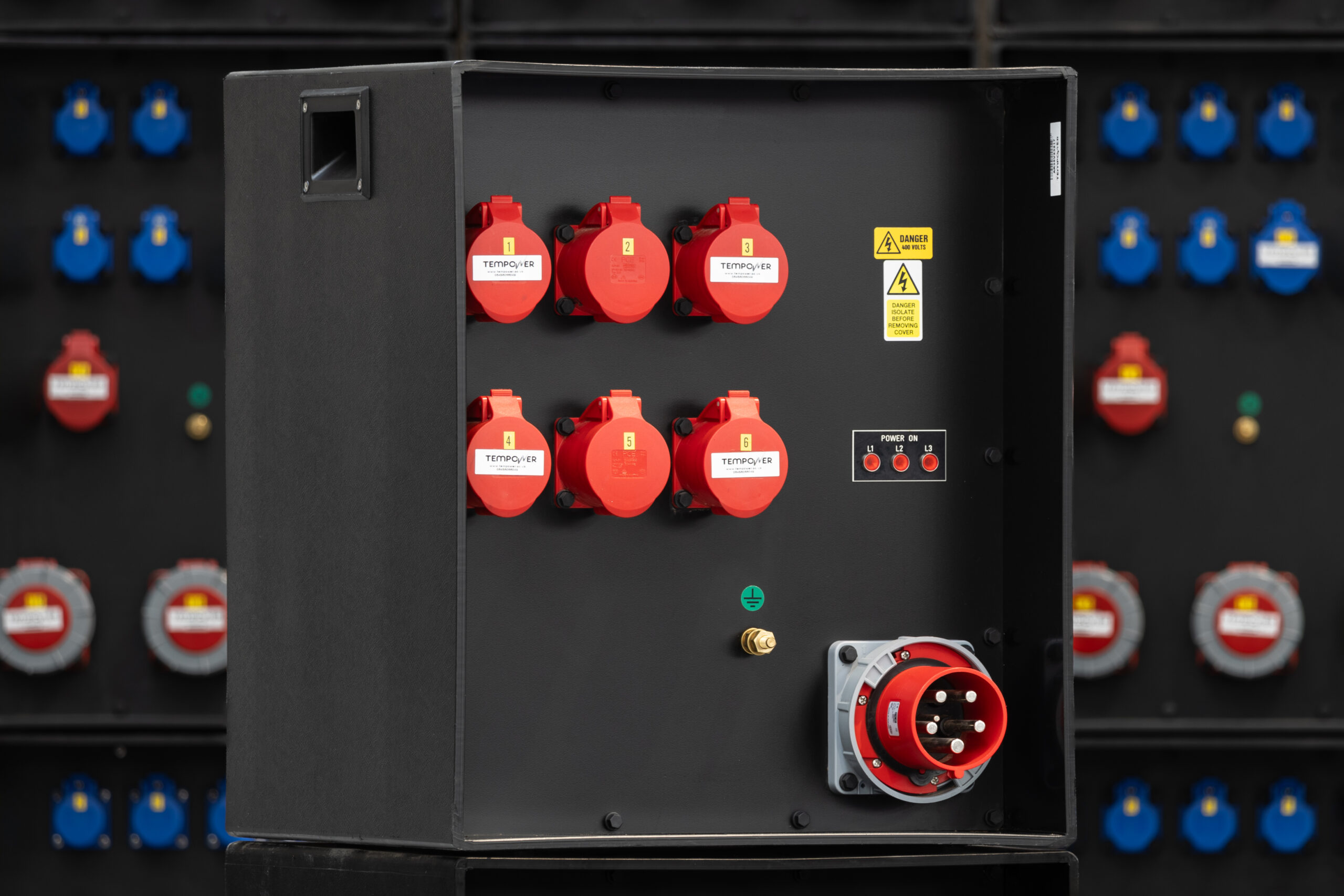

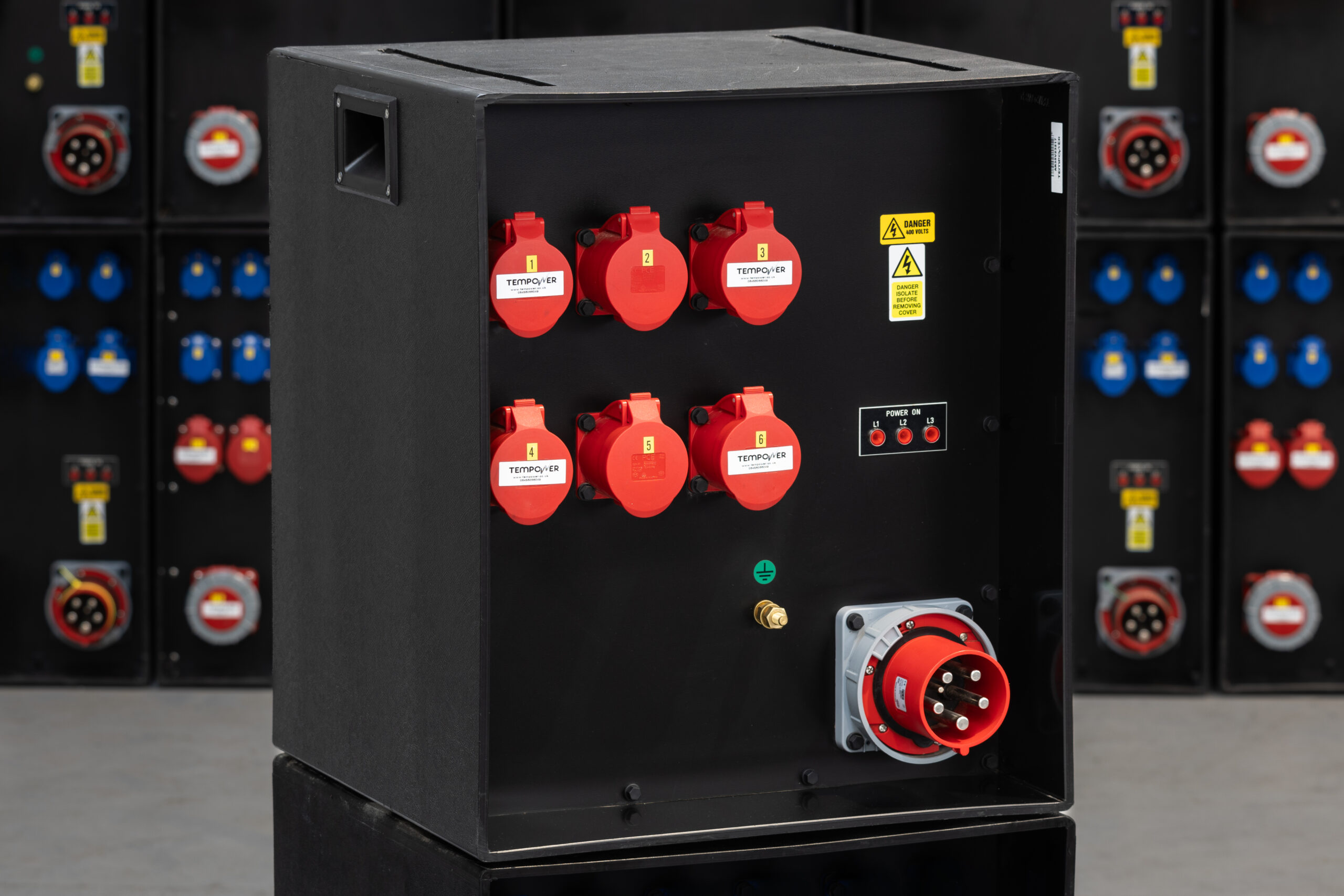

AR35
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 665x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 32A Sockets | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Short Circuit Rating | 6kA | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 400 | C32 | 30 | 10 | BS EN 61009 |

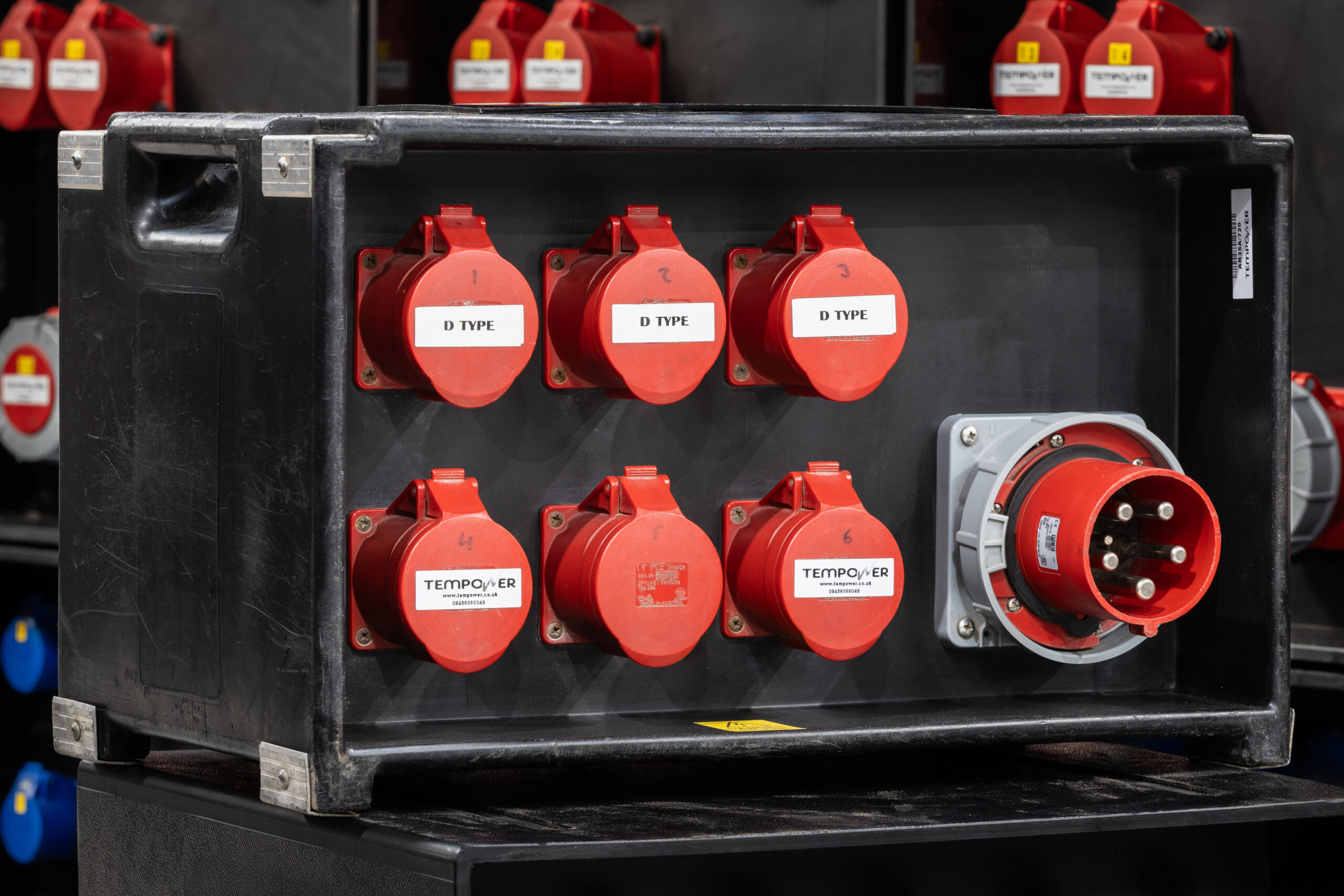

AR 35A
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 560x350x340 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 32A Sockets | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Short Circuit Rating | 15kA | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| MCB | 400 | C32 | N/A | 15 | BS EN 61009 |
AR 35B
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 560x350x340 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 32A | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Short Circuit Rating | 6kA | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x MCBs | 400 | C32 | 100 | 10 | BS EN 60898 |
| MCB | 400 | C125 | 6 | BS EN 60898 | |
| MCB | 400 | BS EN 61008 | |||
AR 35S
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 570x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E C Form |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 32A | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Short Circuit Rating | 6kA | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x MCBs | 400 | C32 | 100 | 10 | |

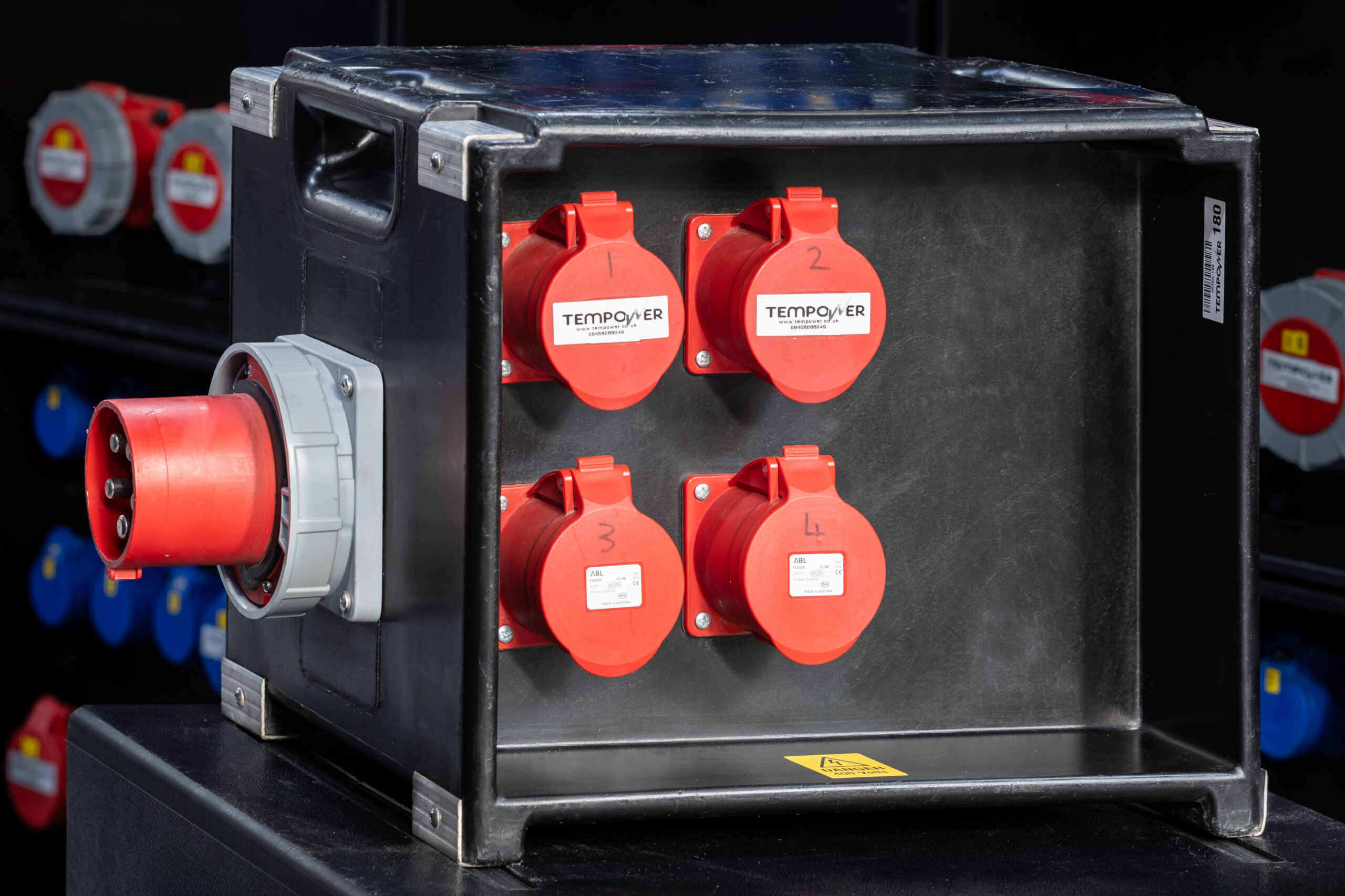

AR 36
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 410x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E C Form |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 4x 32A Sockets | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 4x RCBOs | 400 | C32 | 30 | 10 | BS EN 61009 |
AR 36
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 410x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E C Form |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 4x 32A Sockets | 3ph+N+E |
| Continuous Load | 70% | Switch | 125A | ||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 4x RCBOs | 400 | C32 | 30 | 10 | BS EN 61009 |

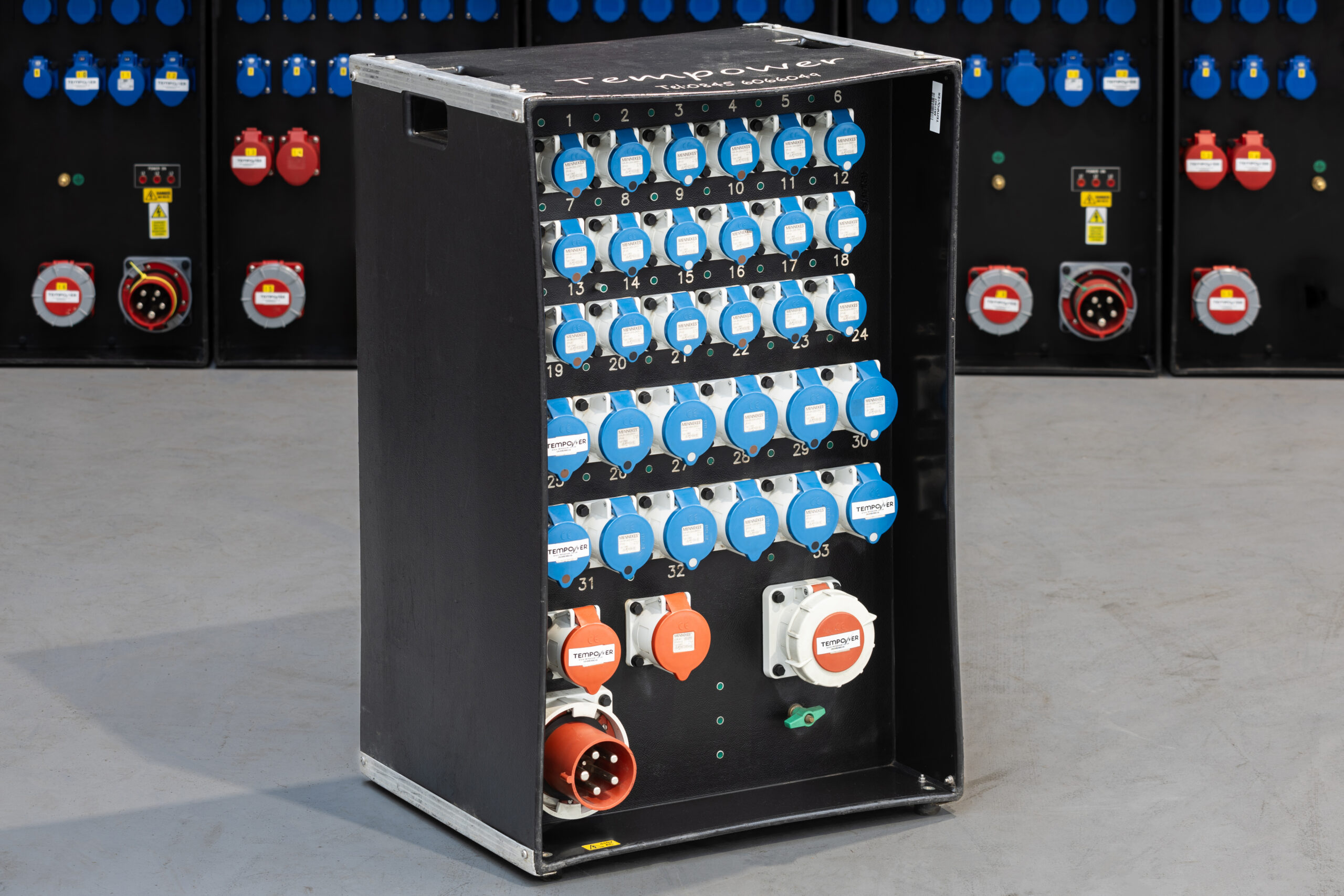

AR 37
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 565x420x865 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 1x 63A Socket | 3ph+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 2x 32A Sockets | 3ph+N+E |
| Continuous Load | 70% | 12x 32A Sockets | L+N+E | ||
| 18x 16A Sockets | L+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 1x MCB 4P | 400 | C125 | 10 | BS EN 60898 | |
| 18x 16A 2P RCBOs | 230 | C16 | 30 | 10 | BS EN 61009 |
| 12x 32A 2P RCBOs | 230 | C32 | 30 | 10 | BS EN 61009 |
| 2x 32A 4P RCBOs | 400 | C32 | 30 | 10 | BS EN 61009 |
| 1x 63A MCB 3P | 400 | C63 | 6 | BS EN 60898 | |
| 1x 63A 4P RCCB | 400 | 10 | 3 | BS EN 60898 | |

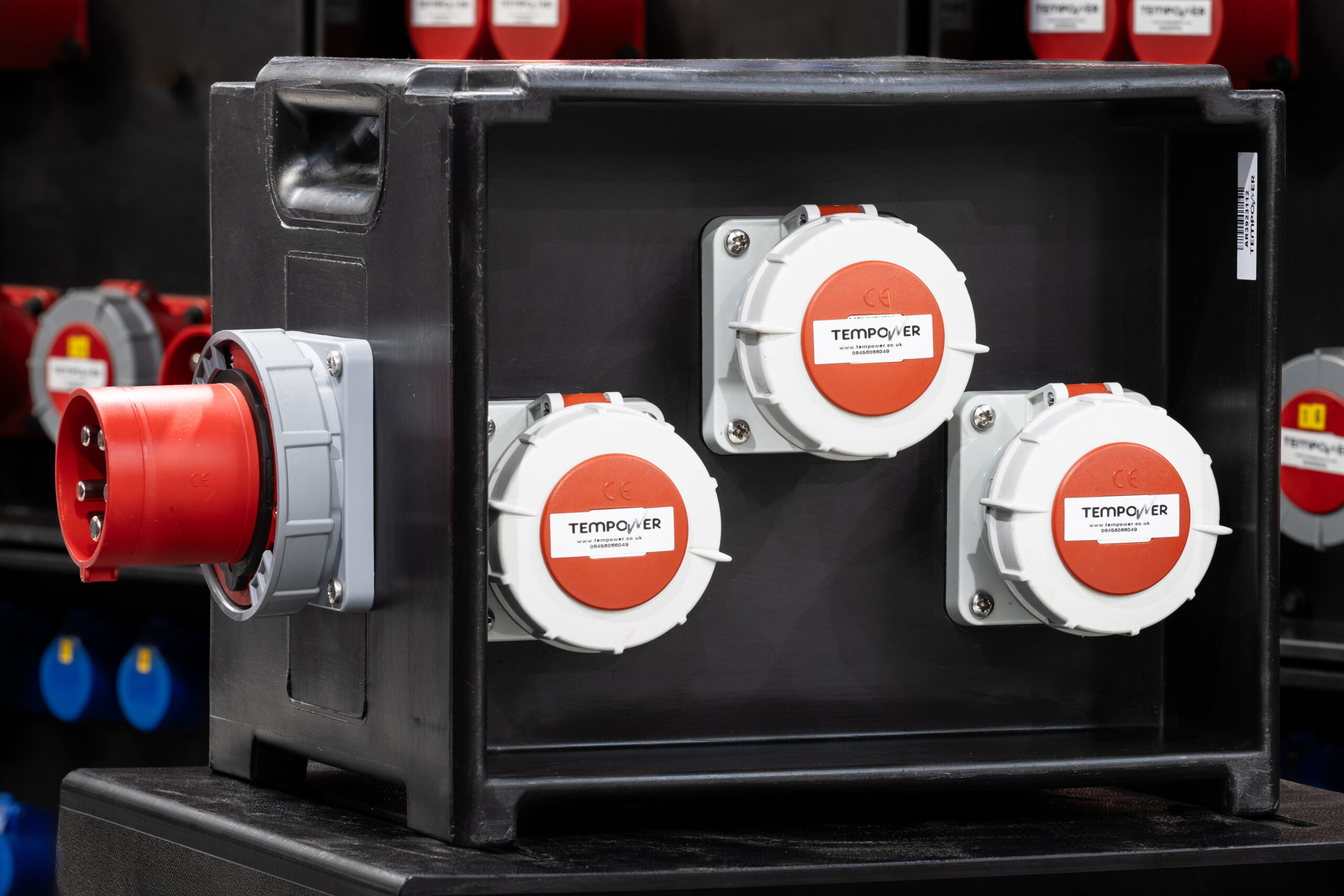

AR 39
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 400x350x330 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 3x 63A Sockets | 3ph+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | ||
| Continuous Load | 70% | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 3x MCBs | 400 | C63 | VIR | 10 | BS EN 60898 |

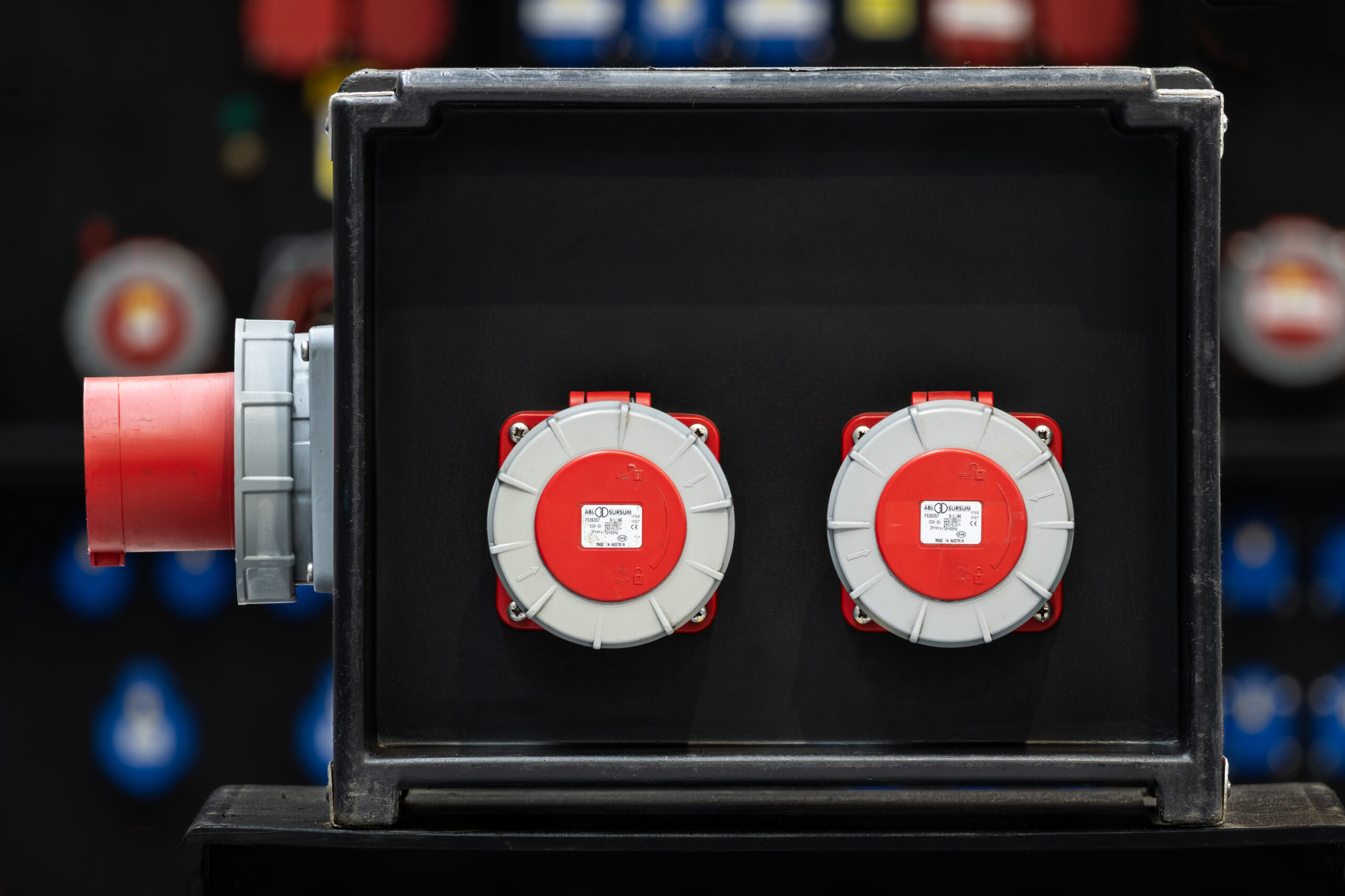

AR 40
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 400x350x340 | Amperage (A) | 125 | 3ph Voltage | 400 |
| Enclosure (IP) | IP44 | Voltage | 400 | ||
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 2x 63A Sockets | 3ph+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | ||
| Continuous Load | 70% | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 2x MCBs | 400 | C63 | VIR | 10 | BS EN 60898 |
| + 2x Shunts with VELRs | |||||

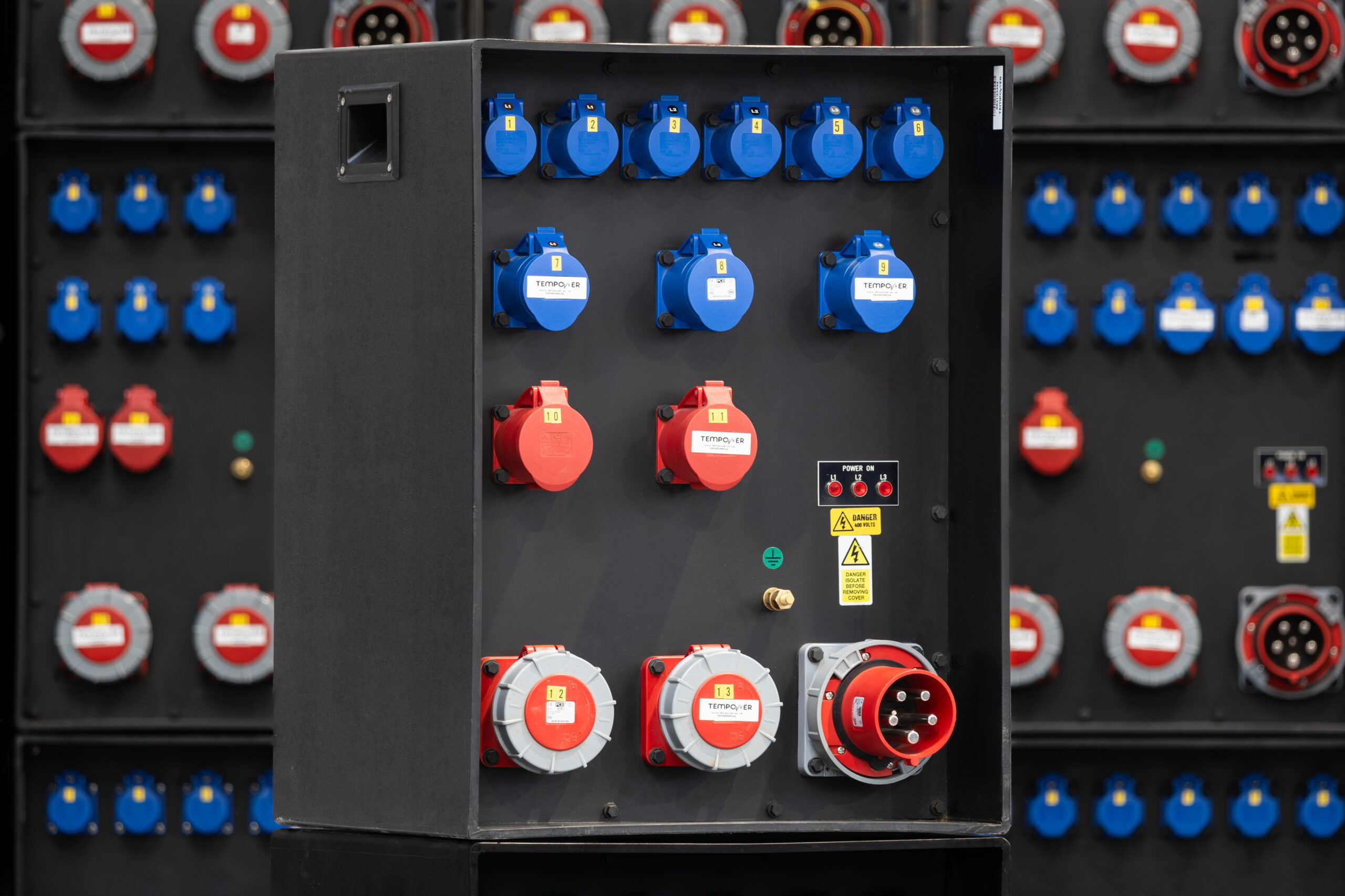

AR 41
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 520x375x550 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 16A Sockets | L+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 3x 32A Sockets | L+N+E |
| Continuous Load | 70% | 2x 32A Sockets | 3ph+N+E | ||
| 2x 63A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 230V | C16 | 30 | 6 | BS EN 61009 |
| 3x RCBOs | 230V | C32 | 30 | 6 | BS EN 61009 |
| 2x MCBs | 400V | C32 | 30 | 10 | BS EN 61009 |
| 2x MCBs | 400V | C63 | 10 | 10 | BS EN 61009 |
| 2x MCBs | 400V | 40A | 10 | 10 | BS EN 61008 |
| 2x MCBs | 400V | C63 | VIR | 3 | BS EN 61008 |

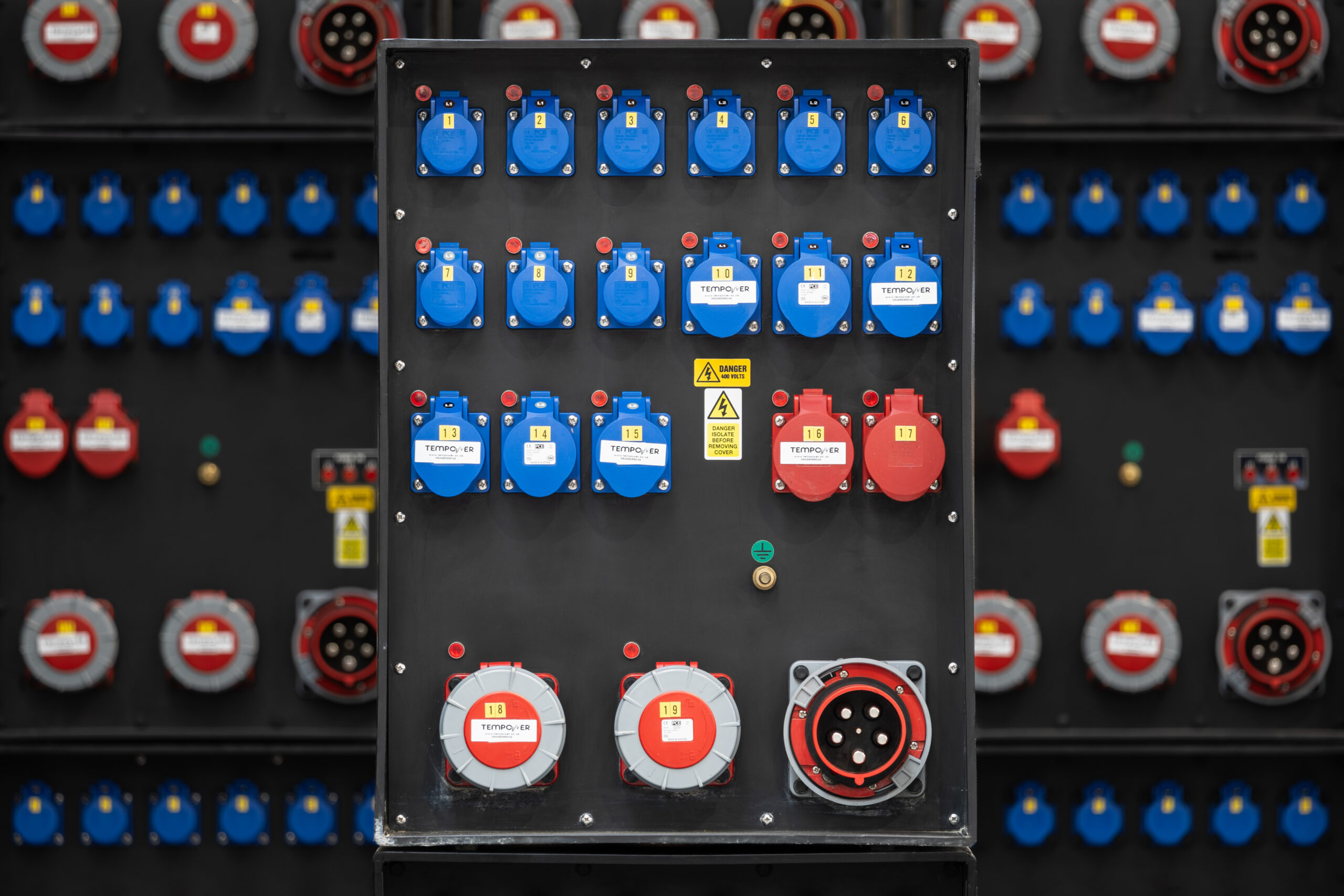

AR 41
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 520x375x550 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 16A Sockets | L+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 3x 32A Sockets | L+N+E |
| Continuous Load | 70% | 2x 32A Sockets | 3ph+N+E | ||
| 2x 63A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 230V | C16 | 30 | 6 | BS EN 61009 |
| 3x RCBOs | 230V | C32 | 30 | 6 | BS EN 61009 |
| 2x MCBs | 400V | C32 | 30 | 10 | BS EN 61009 |
| 2x MCBs | 400V | C63 | 10 | 10 | BS EN 61009 |
| 2x MCBs | 400V | 40A | 10 | 10 | BS EN 61008 |
| 2x MCBs | 400V | C63 | VIR | 3 | BS EN 61008 |

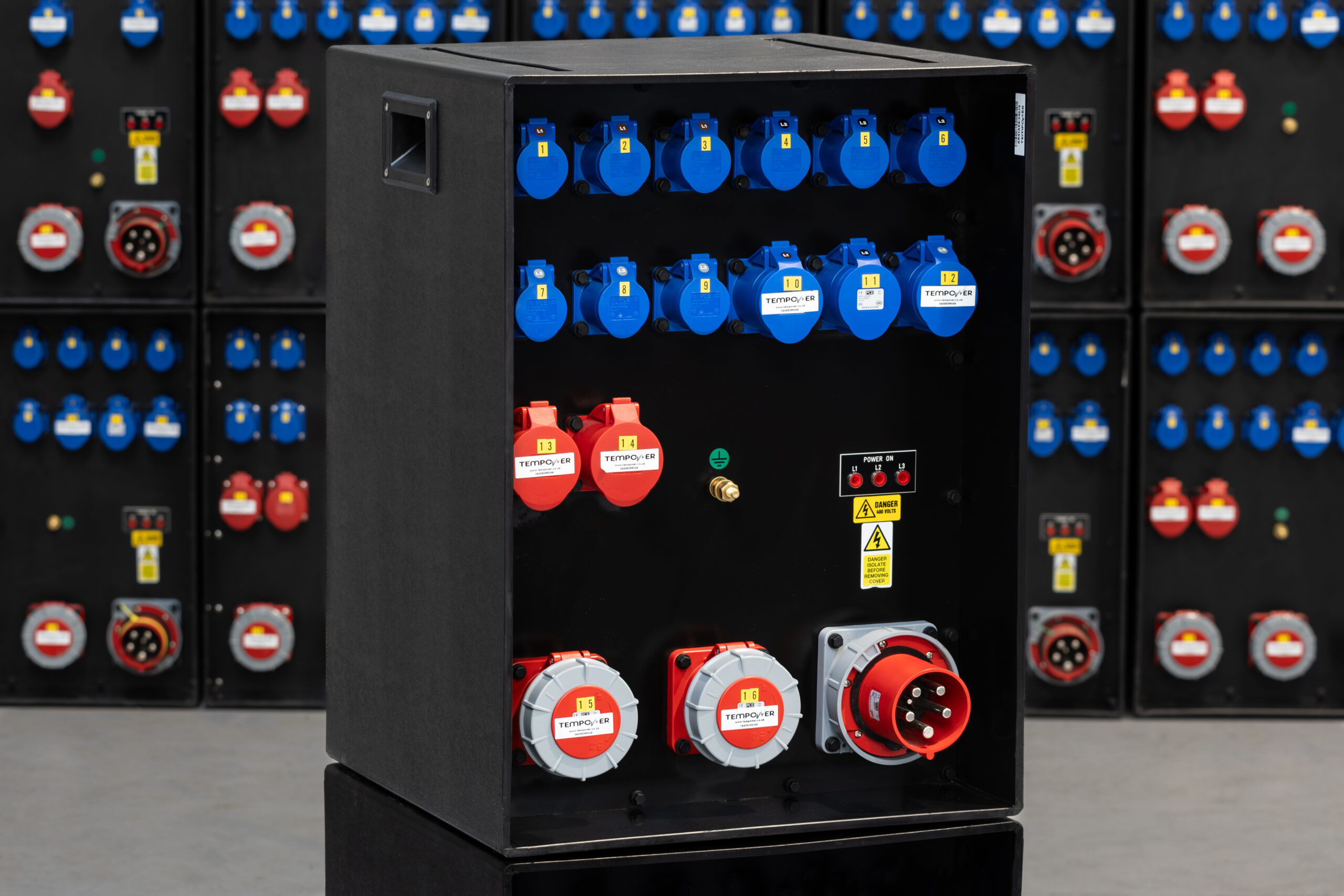

AR 41
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 520x375x550 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 16A Sockets | L+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 3x 32A Sockets | L+N+E |
| Continuous Load | 70% | 2x 32A Sockets | 3ph+N+E | ||
| 2x 63A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 230V | C16 | 30 | 6 | BS EN 61009 |
| 3x RCBOs | 230V | C32 | 30 | 6 | BS EN 61009 |
| 2x MCBs | 400V | C32 | 30 | 10 | BS EN 61009 |
| 2x MCBs | 400V | C63 | 10 | 10 | BS EN 61009 |
| 2x MCBs | 400V | 40A | 10 | 10 | BS EN 61008 |
| 2x MCBs | 400V | C63 | VIR | 3 | BS EN 61008 |
AR 41
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 520x375x550 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 16A Sockets | L+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 3x 32A Sockets | L+N+E |
| Continuous Load | 70% | 2x 32A Sockets | 3ph+N+E | ||
| 2x 63A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 230V | C16 | 30 | 6 | BS EN 61009 |
| 3x RCBOs | 230V | C32 | 30 | 6 | BS EN 61009 |
| 2x MCBs | 400V | C32 | 30 | 10 | BS EN 61009 |
| 2x MCBs | 400V | C63 | 10 | 10 | BS EN 61009 |
| 2x MCBs | 400V | 40A | 10 | 10 | BS EN 61008 |
| 2x MCBs | 400V | C63 | VIR | 3 | BS EN 61008 |
AR 41
| Unit Specification | Supply Connection | Load Connection | |||
| Unit Standard | BS EN 61439-3 | Inlet Standard | BS EN 60309-1+2 | Outlets Standard | BS EN 60309-1+2 |
| Approx Dim: WxDxH | 520x375x550 | Amperage (A) | 125 | 1ph Voltage | 230 |
| Enclosure (IP) | IP44 | Voltage | 400 | 3ph Voltage | 400 |
| Impact (IK) | IK>06 | Connection | 3ph+N+E Appliance inlet |
||
| Unit Max. Amps | 125A | ||||
| Voltage (V) | 400V | Supply Isolation | Connectivity | ||
| Frequency Hz | 50Hz | Switch Standard | BS EN 60947-2 | 6x 16A Sockets | L+N+E |
| Short Circuit Rating | 6kA | Switch | 125A | 3x 32A Sockets | L+N+E |
| Continuous Load | 70% | 2x 32A Sockets | 3ph+N+E | ||
| 2x 63A Sockets | 3ph+N+E | ||||
| Protection Devices | |||||
| Device | Voltage | Rating Type & Amperage | Character – mA | kA – Short Circuit Rating | Device Standard(s) |
| 6x RCBOs | 230V | C16 | 30 | 6 | BS EN 61009 |
| 3x RCBOs | 230V | C32 | 30 | 6 | BS EN 61009 |
| 2x MCBs | 400V | C32 | 30 | 10 | BS EN 61009 |
| 2x MCBs | 400V | C63 | 10 | 10 | BS EN 61009 |
| 2x MCBs | 400V | 40A | 10 | 10 | BS EN 61008 |
| 2x MCBs | 400V | C63 | VIR | 3 | BS EN 61008 |
POWER DISTRIBUTION – 125 AMP
POWER DISTRIBUTION – 125 AMP
